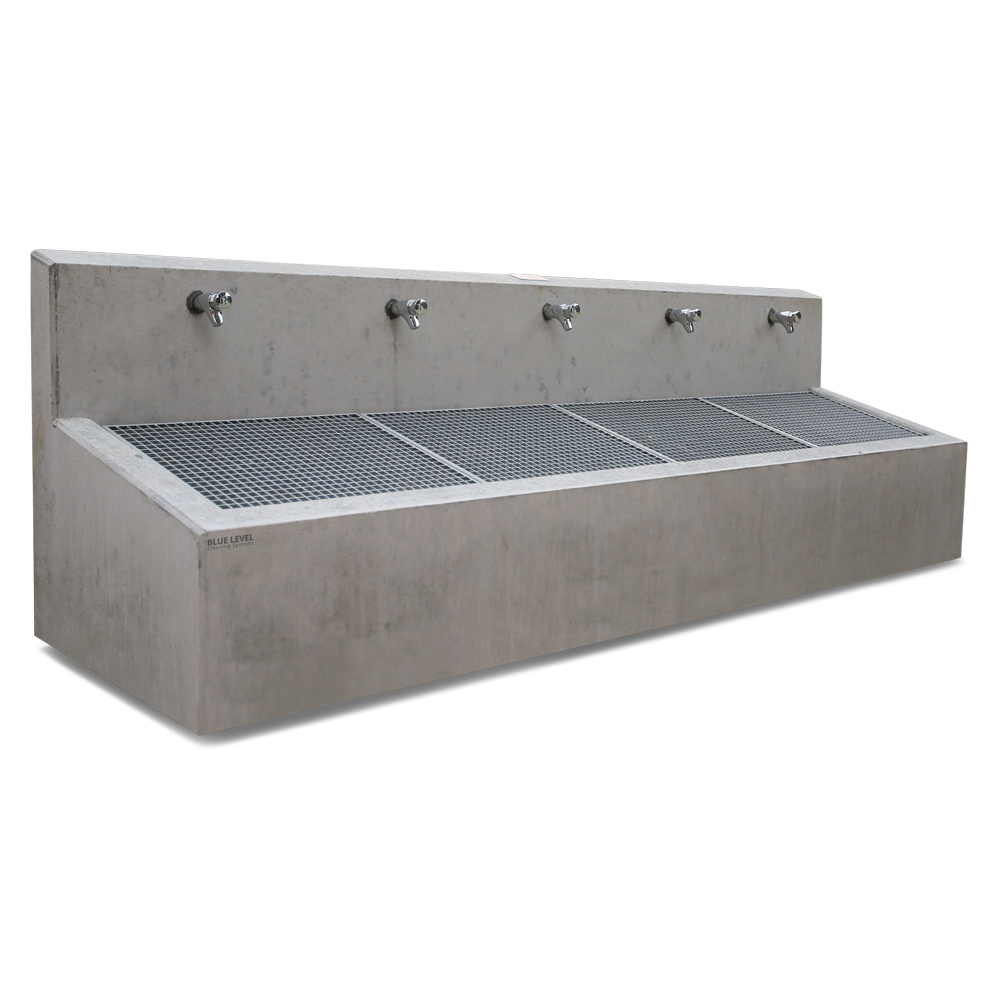

Boot cleaner above ground back wall

Above-ground shoe wash station with back panel – Fast, Convenient, and Thorough Boot Cleaning of Shoes and Boots in high-traffic outdoor areas

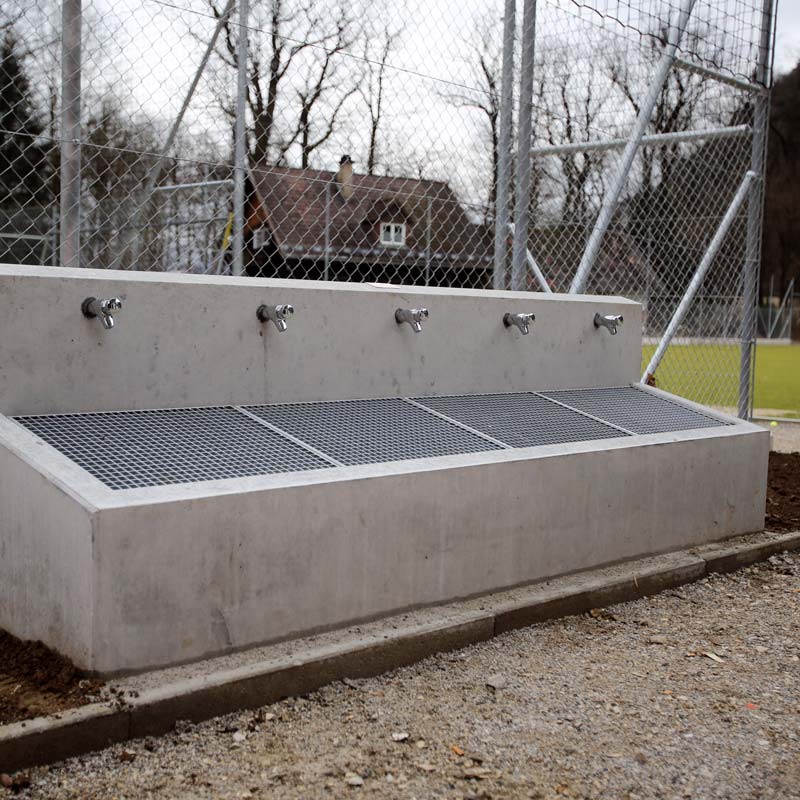

This high-quality shoe washing station offers the ideal solution for quick and easy shoe cleaning at outdoor facilities with high visitor traffic. Ideal applications for these shoe washing stations include school campuses, sports grounds, military bases, police academies, and nurseries. Whether work shoes, combat boots, hiking boots, athletic shoes, or soccer cleats: The above-ground shoe wash station enables convenient, quick, and thorough shoe cleaning and prevents dirt from being tracked into clean indoor areas.

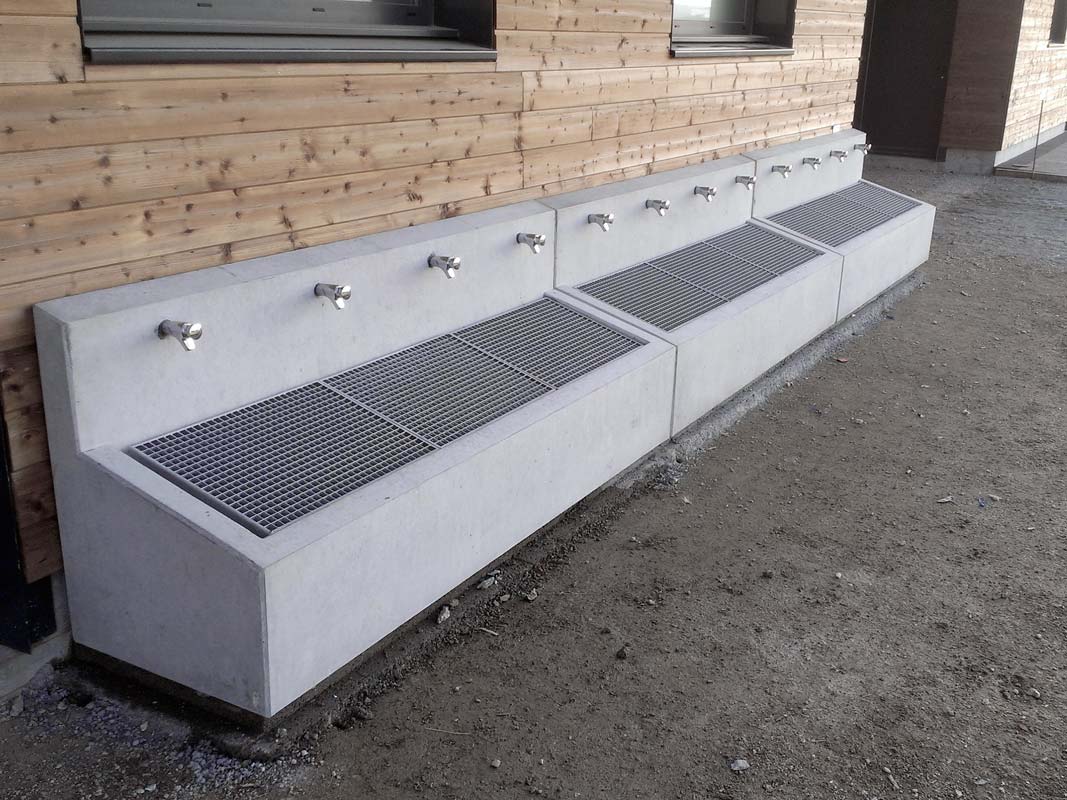

The shoe washer is made of smooth concrete and features chamfered edges, which give it exceptional sturdiness and durability. To prevent heavy splashing of dirty water, the washing station has an integrated concrete back wall. This allows the above-ground shoe wash station to be placed directly against any building facade without fear of causing significant damage to it. The grating panels, made of galvanized steel, are also characterized by their durable construction. They can be easily removed for thorough cleaning of the unit.

The shoe and boot washer is available in three different versions (see options). You can choose between 2, 4, and 5 washing stations; the length and number of faucet connections vary depending on the version selected. The position of the water inlet can be freely selected, allowing you to tailor the Shoe washing station specifically to local conditions. Additional flexibility is provided by the standardized faucet connections, which allow for the installation of any faucet or hand-washing brush of your choice. We offer a wide range of faucets and brushes in our accessories section.

The above-ground shoe wash station is the ideal solution for efficient and convenient cleaning in virtually any outdoor setting.

Notes:

• When placing your order, please let us know where the water connection should be located.
• Before putting the system into service (installing the faucets), the supply lines must be flushed
• The maximum line pressure is 5 bar
• A fine filter can be installed in the supply line
• The line can withstand a maximum operating pressure of 6 bar. If the pressure is higher, a pressure-reducing valve must be installed on site.
• Water pipes must be drained before winter to prevent frost damage
• In systems with self-closing valves, at least one drain valve must be removed for draining

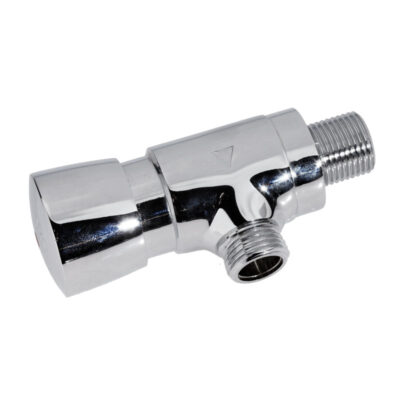

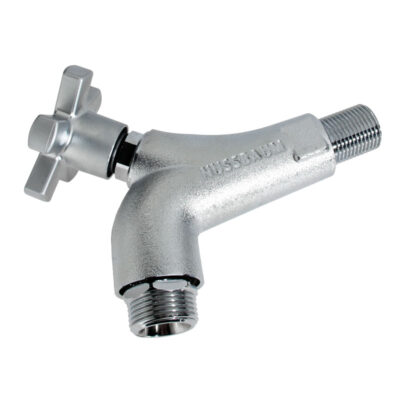

• Faucets are not included. Under “Accessories,” you’ll find a selection of faucets and scrub brushes.
• Prices do not include on-site preparatory work, installation, or transportation. Installation must be performed by a local plumber or construction company.
• Before installation, the customer must install the foundation/support structure, water connection, and drain with a sediment trap.

Option:

Above-ground shoe wash station with Back Panel, 2 Washing Stations

Length a = 40 cm, length b = 62 cm

1 concrete wash trough
2 grating panels
2 1/2″ connections for faucets

Weight: 600 kg

Faucets and hand-washing brushes are available as accessories.

Option:

Above-ground shoe wash station with Back Panel, 4 Washing Stations

Length a = 25 cm, length b = 92 cm

1 Washing tub
3 Wire grates
4 1/2″ faucet connections

Weight: 900 kg

Faucets and hand-washing brushes are available as accessories.

Option:

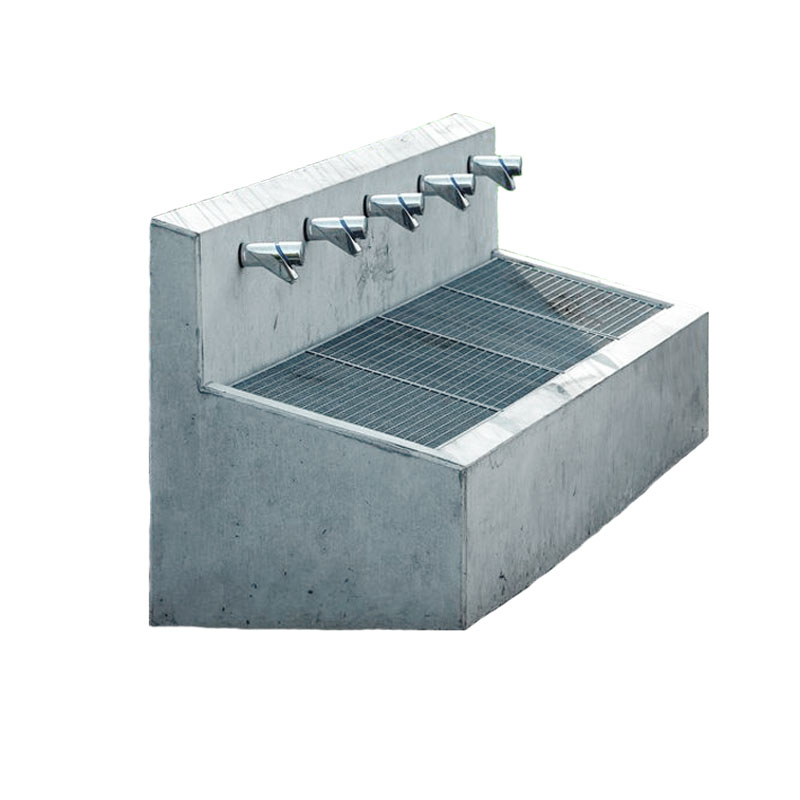

Above-ground shoe wash station with Back Panel, 5 Washing Stations

Length a = 30 cm, length b = 122 cm

1 Sink
4 Grates
5 1/2″ faucet connections

Weight: 1,200 kg

Faucets and hand-washing brushes are available as accessories.
