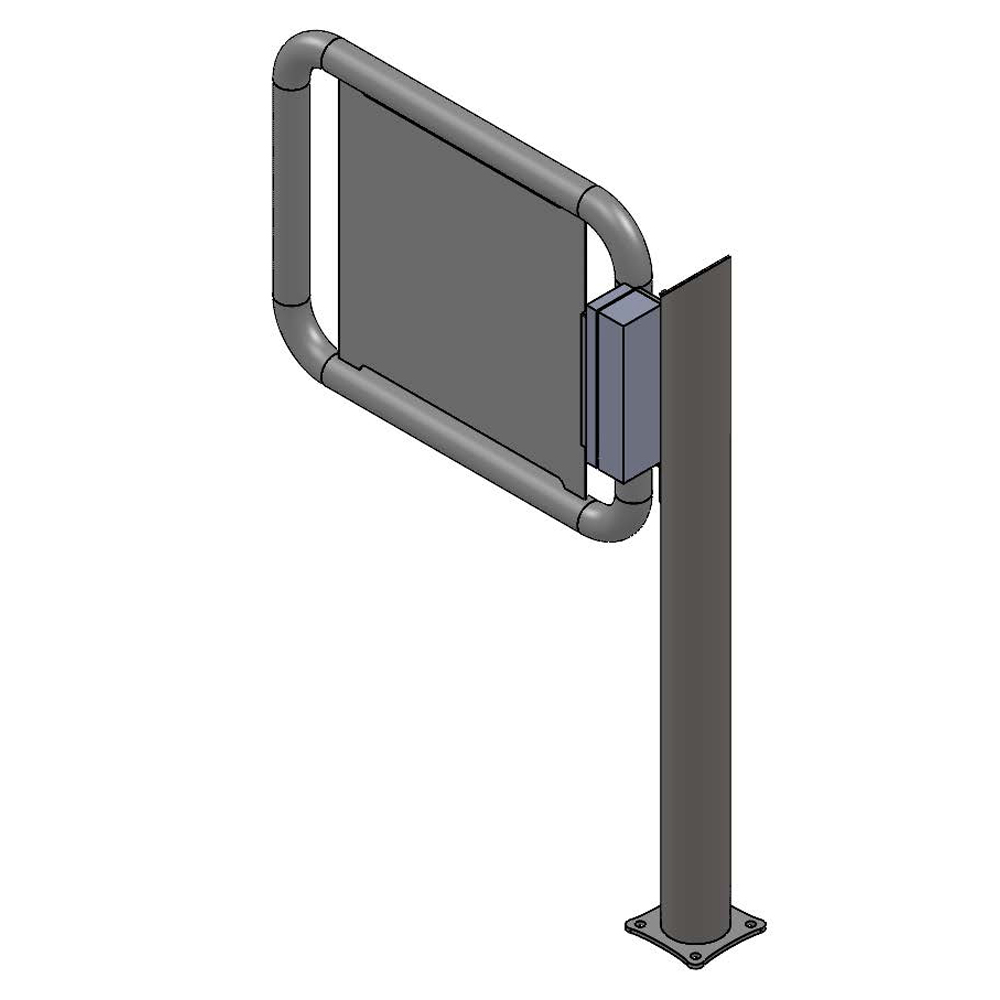

Stainless Steel Magnetic Gate

The Stainless Steel Magnetic Gate was designed for narrow passageways where people need to be reliably guided and access controlled. It is particularly well-suited for use in combination with our “Escape Route” entry control system in industrial, food processing, hygiene, and operational areas. Thanks to its compact version, the gate can also be used in locations where space for an access solution is limited.

The Stainless Steel Magnetic Gate offers the following impressive features:

• Swing gate with surface-mounted magnet
• With a sturdy base for floor mounting
• Hinge on the right
• For controlled movement of people through narrow passageways
• Suitable for use in combination with the escape route entry control system
• Designed for connection to an authorization device
• Can be activated via an emergency stop device, key switch, turnstile, PDE system, or push button
• The gate must be opened and closed manually
• A separate electrical panel with a 230 V connection is required
• The customer must determine the location of the control box
• ASR A2.3 must be taken into account when planning the clear door width

The Stainless Steel Magnetic Gate is a compact solution for areas where controlled access with an additional release option is required. The surface-mounted magnet keeps the gate locked during normal operation and can be unlocked via a suitable release mechanism provided by the customer or integrated into the system.

Depending on the system, the gate can be unlocked using an emergency stop device, a key switch, a push button, a PDE system, or an Entry control device such as our “Emergency Exit Entry Control” system. After unlocking, the gate is opened manually and then closed again by hand.

Thanks to its base, the gate is suitable for permanent floor mounting at the designated passageway. The sturdy stainless steel construction, made of round tubing (Ø 42×2 mm ), is designed for professional use. Electrical connection is provided via a separate control box with a 230 V connection. The exact location of the control box must be determined by the customer.
