This freestanding stainless steel boot washer is the ideal solution for any setting where dirty footwear needs to be cleaned quickly and reliably without requiring structural modifications to the floor . The unit is particularly well-suited for fire departments, maintenance depots, farms, and industrial and food processing companies. The unit is set up, connected, and ready for immediate use.
The “Stainless Steel Surface-Mounted Boot Washer” stands out in professional settings thanks to the following features:
- Boot Washer Made of High-Quality, Stainless Steel
- For above-ground installation on existing ground surfaces

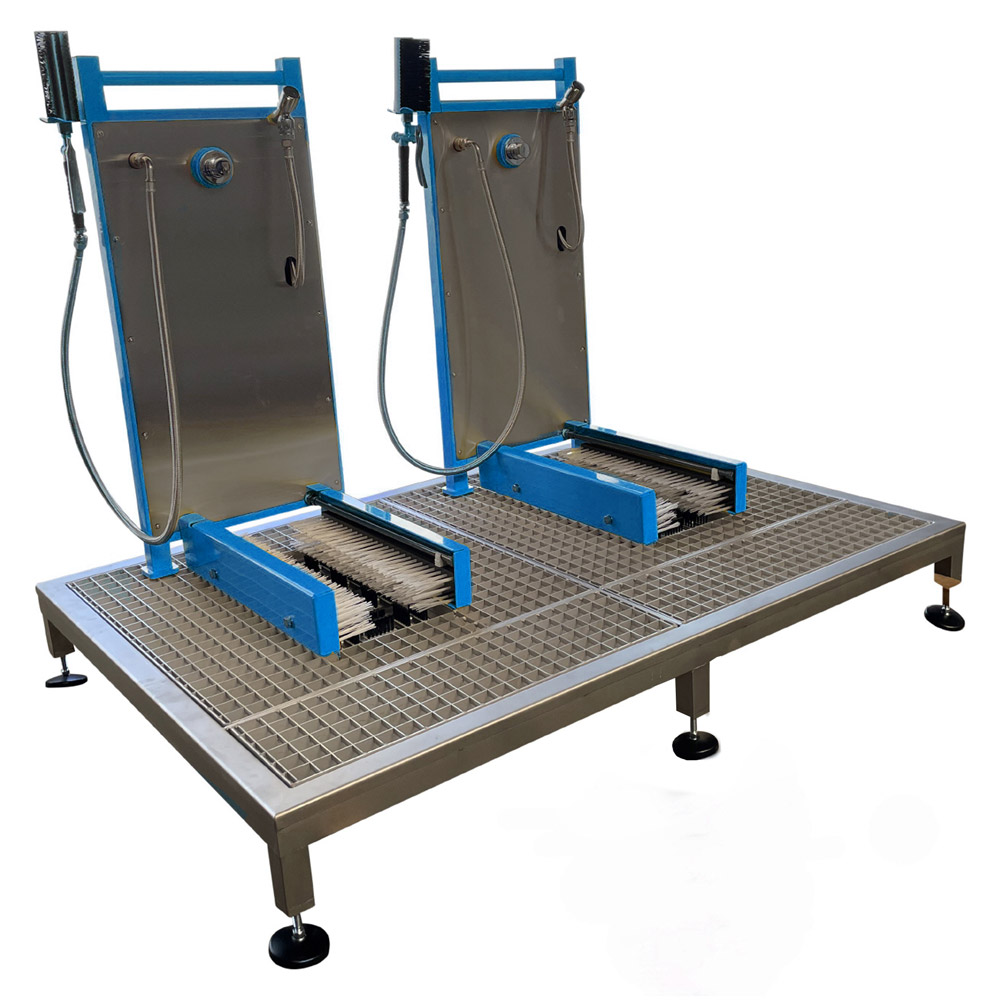

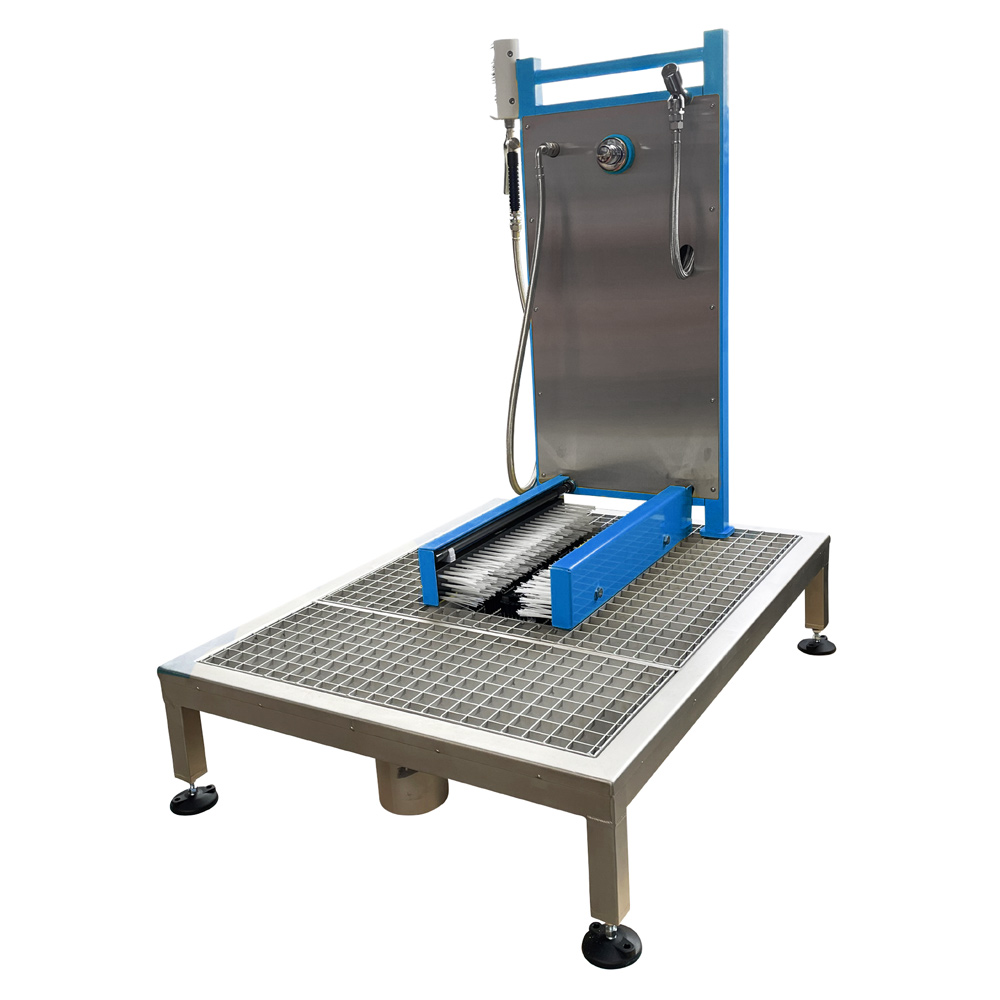

- Optionally available with 1 or 2 cleaning stations
- Step height adjustable from 215 to 240 mm via height-adjustable feet
- Sole and side brushes for thorough cleaning up to ankle height
- With 12 easily replaceable sole brush strips
- Two cleaning brushes mounted on each side
- Comes with a water-fed hand brush, including a 1.5-meter-long metal flexible hose
- With a CA system separator in accordance with DIN EN 1717 to protect water quality
- Stainless steel tub with a horizontal drain (NW 50)
- Stainless steel splash guard, sludge strainer, and odor trap
- With a stainless steel support bracket for greater stability
- Automatic water shut-off valve integrated into the retaining bracket
- Removable stainless steel wire racks for easy cleaning
- No power connection required
The stainless steel surface-mounted boot washer is installed entirely above the existing floor and is ideal for situations where a recessed installation is not possible. Depending on your needs, the unit is available with 1 or 2 washing stations (see options). Once connected to the water and drain lines, the system is immediately ready for use.
Cleaning is performed using sturdy sole brushes in combination with side-mounted cleaning brushes, which reliably remove dirt from the sole up to ankle height. Each cleaning station is equipped with 12 replaceable sole brush strips and 2 side brushes . For targeted additional cleaning, a water-fed hand brush is available on the left side, complete with a 1.5-meter heavy-duty hose featuring a quick-connect valve and a stainless steel spray nozzle.
The unit comes standard with a splash guard . The step height can be adjusted from 215 to 240 mm using the stainless steel leveling feet to suit local conditions. During the cleaning process, the powder-coated stainless steel handrail provides a secure way to hold on. The handrail also incorporates the self-closing valve for automatic water control as well as the CA system separator in accordance with DIN EN 1717.
The wastewater is collected in the stainless steel basin and drained through the horizontal NW 50 drain. The integrated sludge strainer and odor trap ensure hygienic and clean operation. The grates can be easily removed for maintenance and cleaning, providing easy access to all relevant areas. The water connection must comply with the regulations of the local water utility and must be installed by a licensed contractor. An electrical connection is not required.
The boot washer is delivered on a pallet. It is delivered by truck to the curb.
- Housing: 1.4301 stainless steel with yellow powder coating
- Dimensions (1 cleaning station):
- 848 mm x 1106 mm (width x depth)
- Height including support bracket: 1195 mm
- Part number: STW-00021
- Dimensions (2 cleaning stations):
- 1534 mm x 1106 mm (width x depth)
- Height incl. Handrail: 1195 mm
- Item number: STW-00022
- Handrail height: 980 mm
- Step height: 215–240 mm adjustable
- Brushes (per washing station): 1 water-fed hand brush, 2 side brushes, 12 sole brushes
- Water supply (per washing station): KW R1/2" with shut-off valve
- Water drain: horizontal NW 50
- Operating pressure (per washing station): 2–6 bar
- Power connection: not required
- Weight: kg
- Warranty: 2 years
