Boot washing station with splash guard

The boot washing station with a Splash guard provides thorough cleaning for 1 to 2 pairs of boots at a time, making it ideal for smaller slaughterhouses and food producers. A system separator compliant with DIN 1717 is located on the splash guard back panel. Equipped with water-fed stainless steel hand brushes and a fold-out stainless steel boot rack, the boot washing stations ensure convenient and thorough cleaning. The drain assembly with a trap and the removable sludge collection bucket facilitate simple, daily maintenance. The robust stainless steel construction makes the system durable and easy to clean, with no electricity required.

The boot washing station with a splash guard offers the following features:

• Professional boot washing stations for thorough boot cleaning
• Available for 1 to 2 wash stations
• With a stainless steel splash guard back panel
• Boot rest with a fold-out stainless steel grating
• Installation at floor level on the finished floor
• Boot cleaning station equipped with 1–2 water-fed hand brushes
• Sturdy nylon bristles for thorough cleaning
• Includes a quick-connect valve and a 1-meter stainless steel flexible hose
• No power connection required
• Suitable for various industries, such as slaughterhouses and food production
• Water connection: min. R 1/2″
• DN 100 drain: choice between vertical and horizontal
• System separator in accordance with DIN 1717
• Drain body with odor trap
• Easy to clean, thanks to the easily removable sludge collection bucket
• Durable construction made of brushed 2 mm 1.4301 stainless steel sheet
• Drain valve with backflow preventer and pipe aerator
• Operating pressure: 2 to 6 bar
• Flow rate: approx. 7 L/min

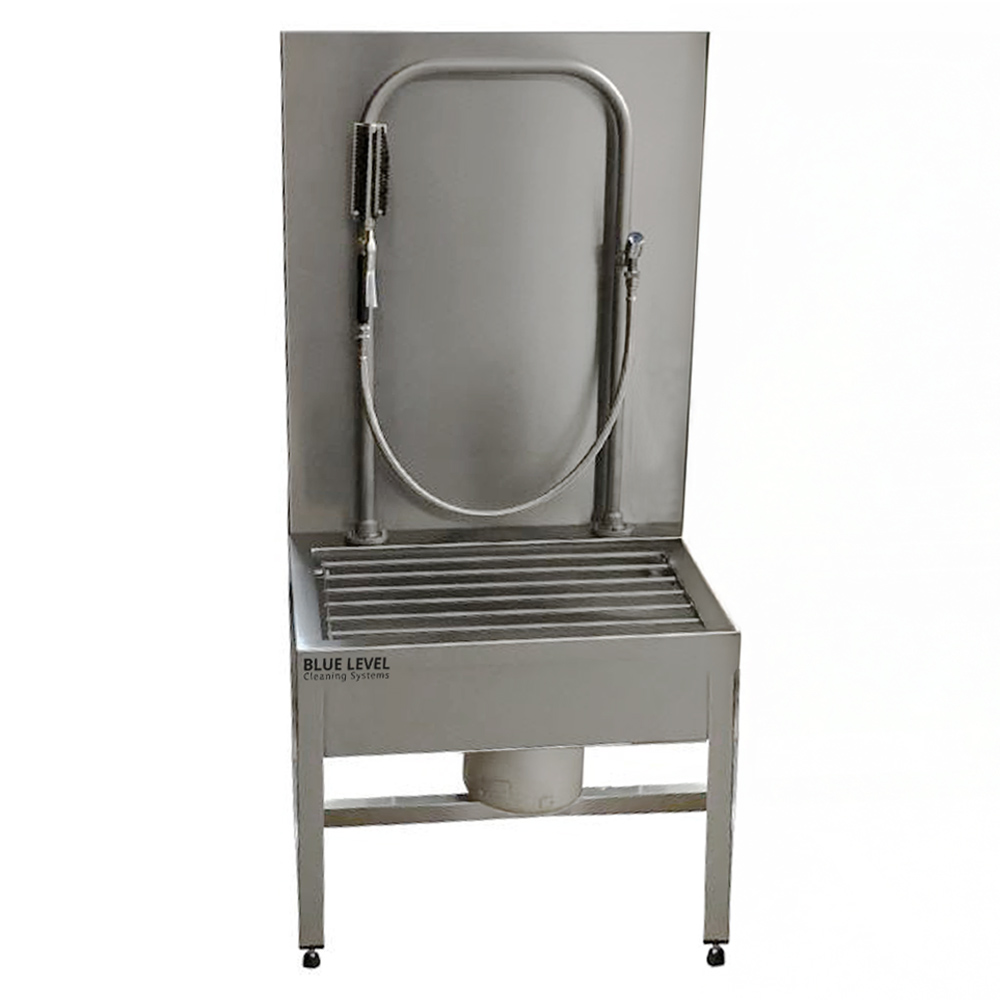

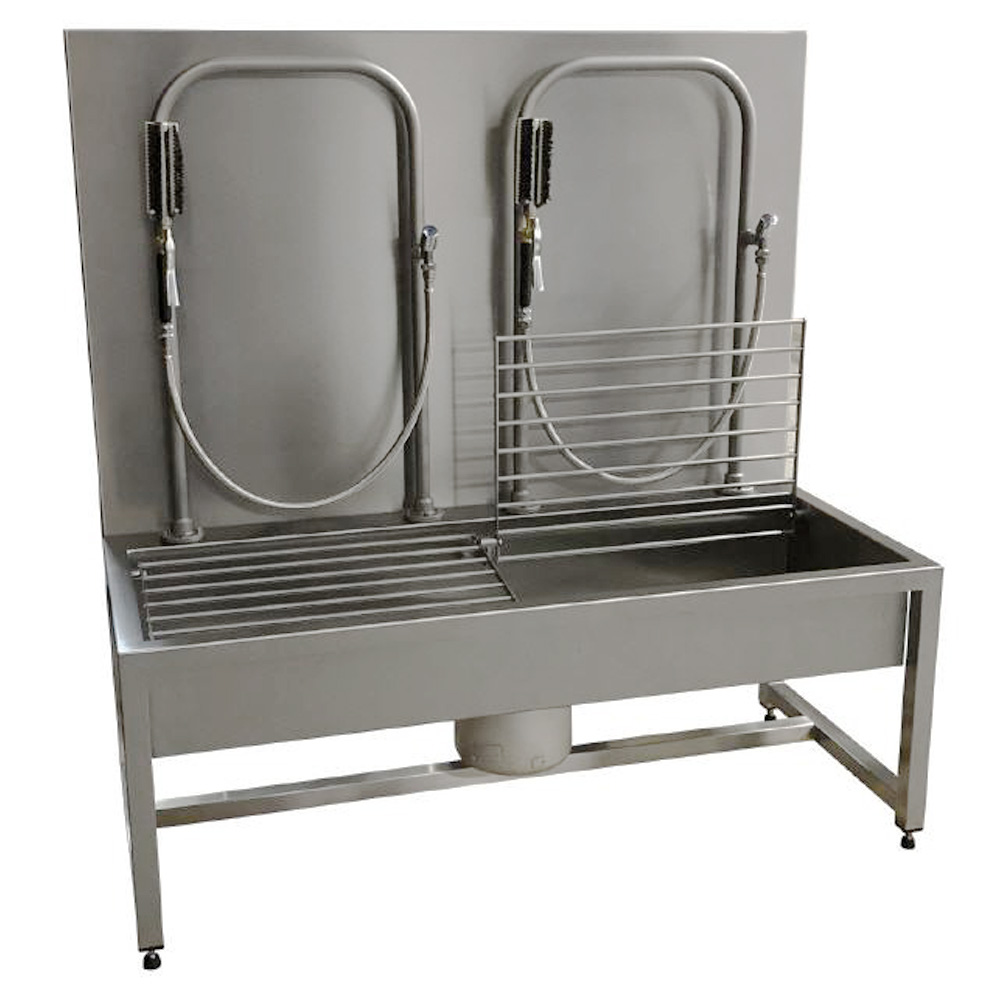

The boot washing station with a Splash guard is the ideal solution for thorough and efficient cleaning of boots across various industries. It is particularly well-suited for smaller businesses and manufacturers that must adhere to the highest hygiene standards. The boot washing station with Splash guard is available in two versions (see options): for one washing station and for two washing stations, with corresponding lengths of 700 mm or 1400 mm. Both models are equipped with a splash-proof back panel and a system separator compliant with DIN 1717, which ensures safe and hygienic water flow. Installation is at floor level on the finished floor, and the unit can be installed either against a wall or freestanding.

Each washing station is equipped with a water-fed hand brush featuring sturdy nylon bristles and two rows of water jets. The hand brush is attached to a 1-meter-long stainless steel flexible hose and is equipped with a quick-release valve operated by a hand lever. This allows for convenient and thorough cleaning of boots and other items.

The unit features a fold-out stainless steel boot rack. The drain assembly is equipped with a trap that prevents unpleasant odors. A removable sludge collection bucket ensures easy, daily cleaning of the unit. Water drains through a DN 100 pipe, and the boot washer operates at a working pressure of 2 to 6 bar with a flow rate of approximately 7 liters per minute. Another advantage of the boot washing station with a splash guard is that it requires no electricity, making its installation and operation particularly energy-efficient.

This boot washer is ideal for daily use in smaller slaughterhouses, meat-processing facilities, and other food industry production facilities. The system’s ease of maintenance and cleaning helps make operations particularly efficient and cost-effective. The boot washing station, complete with a Splash guard, is delivered on a pallet by truck to the curb. Upon your request, we’d be happy to discuss all details with you to provide the best possible advice regarding the version, features, and installation at the appropriate location.
