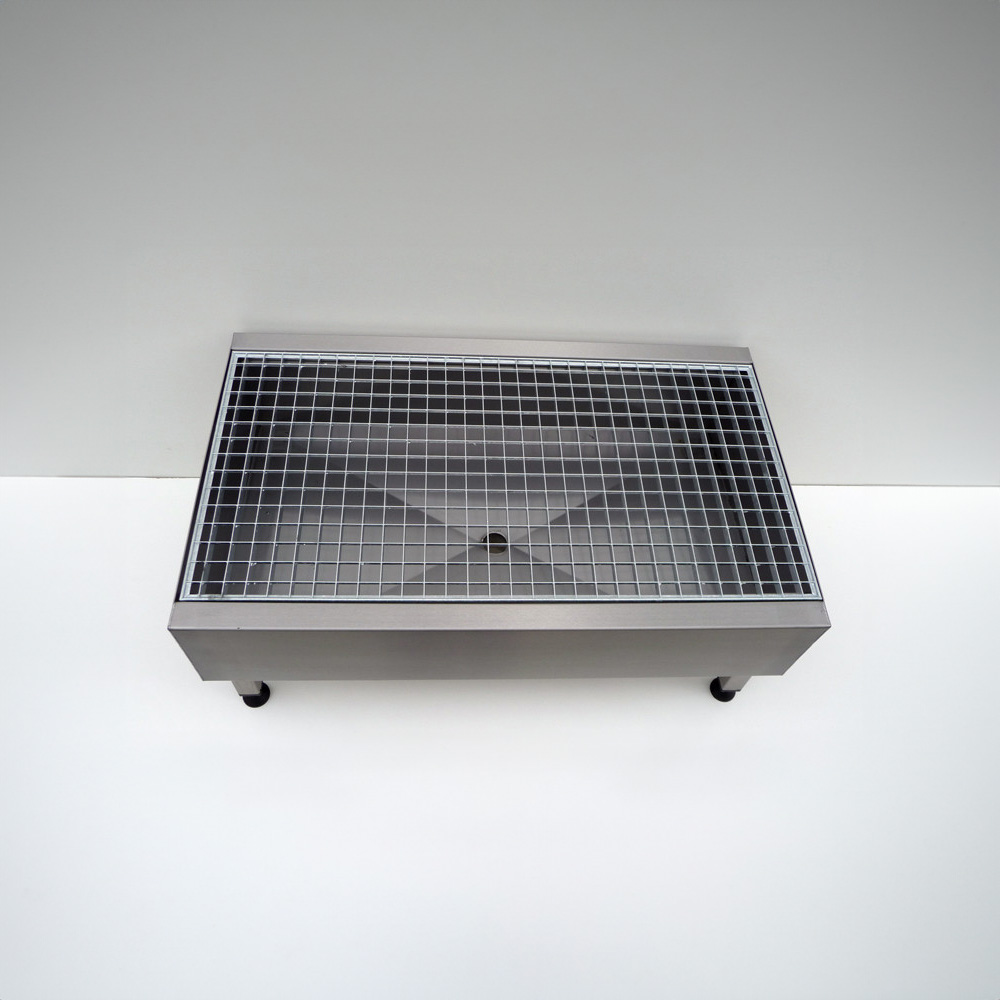

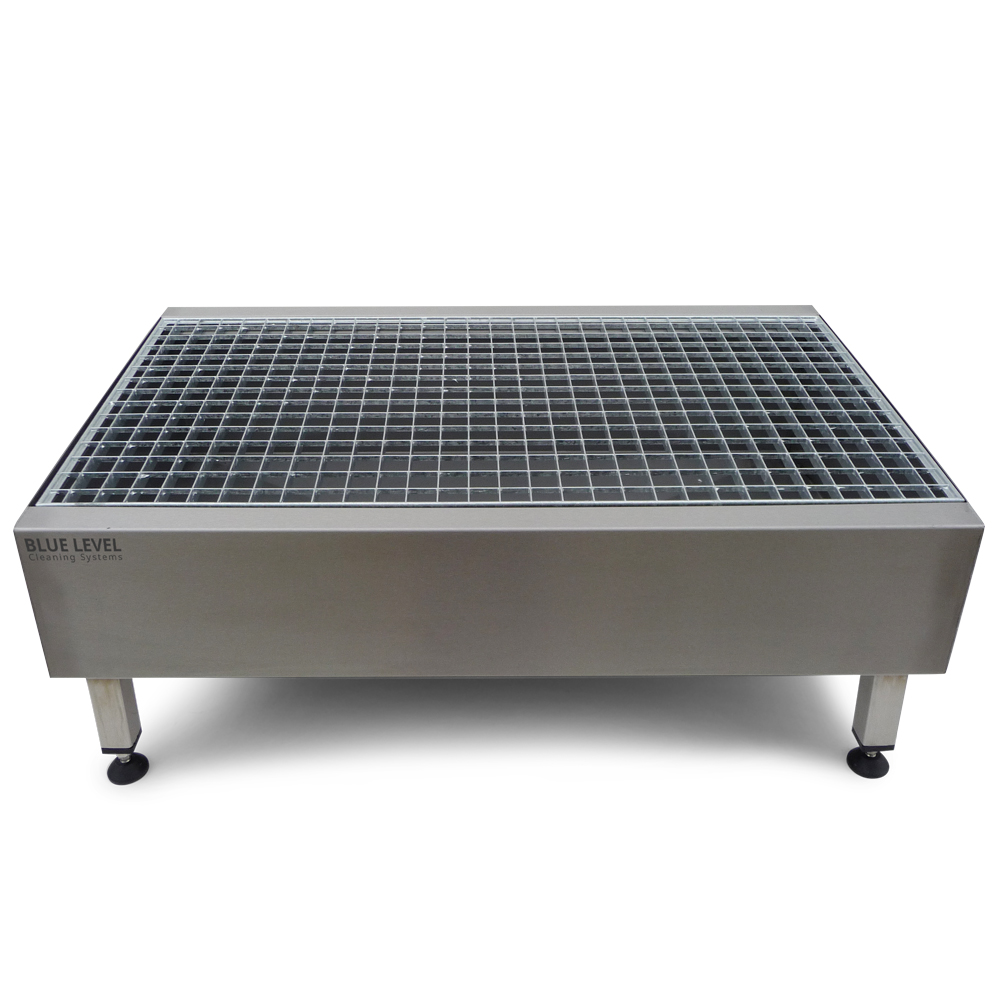

Multi-Grate boot washing station

The Multi-Grate boot washing station is a professional boot washing trough designed for wall mounting. Made of high-quality, 2-millimeter-thick stainless steel sheet , it is ideal for heavy-duty use in fire stations, police stations, butcher shops, or agricultural settings. The boot washer is covered by a large, galvanized grate. For use in hygiene-sensitive areas, the unit can optionally be supplied with a stainless steel grating (see options).

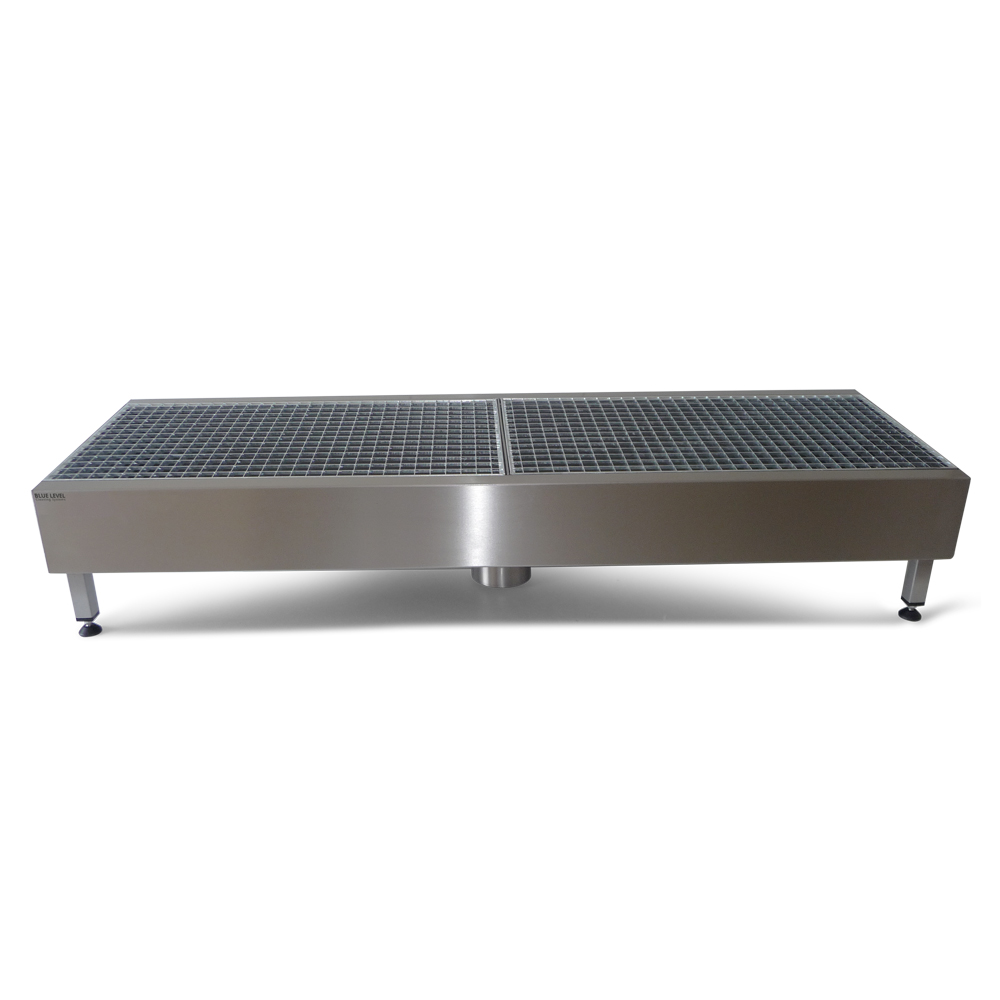

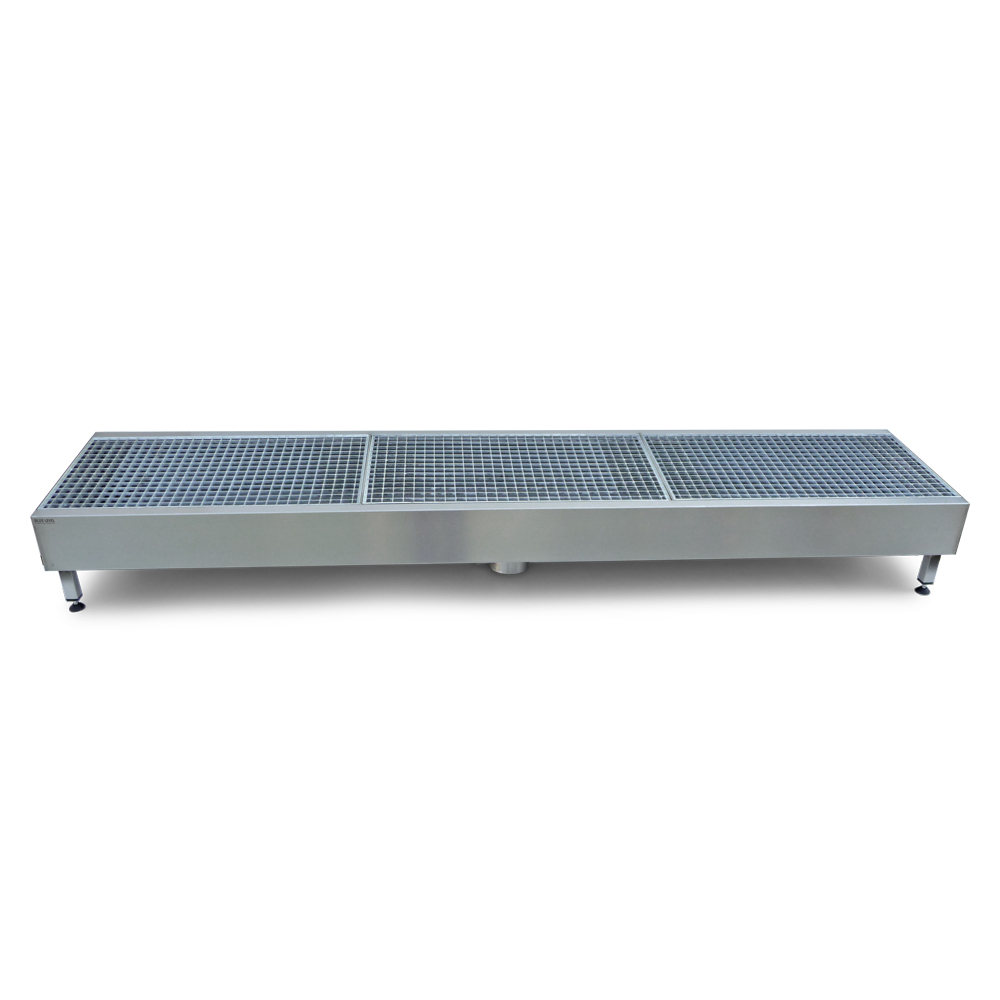

The boot wash station is available with washing stations for 2, 4, and 6 people (1, 2, and 3 meters in length). We recommend a width of 1 meter for every 2 people. If these standard dimensions do not meet your needs, we are happy to offer custom-made products with special dimensions upon request.

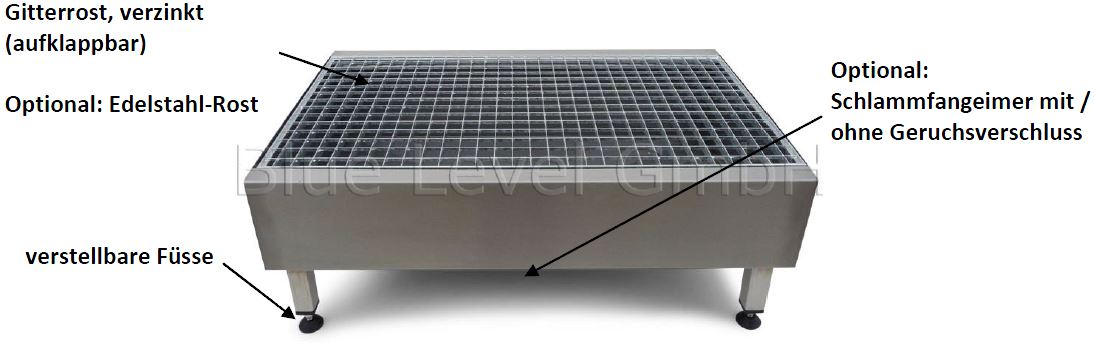

The Multi-Grate boot washing station stands out for the following features:

• Serves 2 to 6 people, depending on the option selected
• Made of brushed 2 mm stainless steel sheet, grade 1.4301
• Boot rest with removable grating, galvanized (or, as an option, with stainless steel grating)
• 4 height-adjustable legs
• NW 50 drain
• Available for an additional charge with a sludge collection bucket and odor trap (see options)
• Large stainless steel collection tray for collecting and draining used water
• No power required!
• Hand washing brushes are not included. Please select from the various models available under “Accessories” at the bottom of this page:

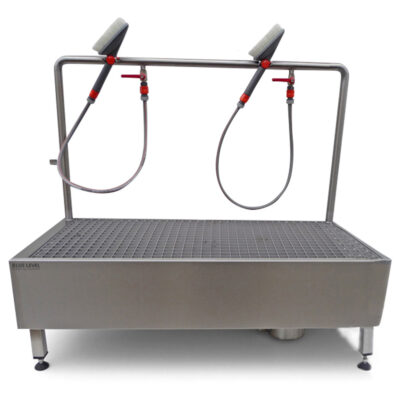

  Matching hand brushes in 2 versions (see Accessories):
  1.) Basic plastic model with nylon bristles, 1 m
  connection hose.
  2.) Professional version made of stainless steel with a plastic handle, manual pressure valve,
  1.5 m connection hose, R 3/4-inch connection.

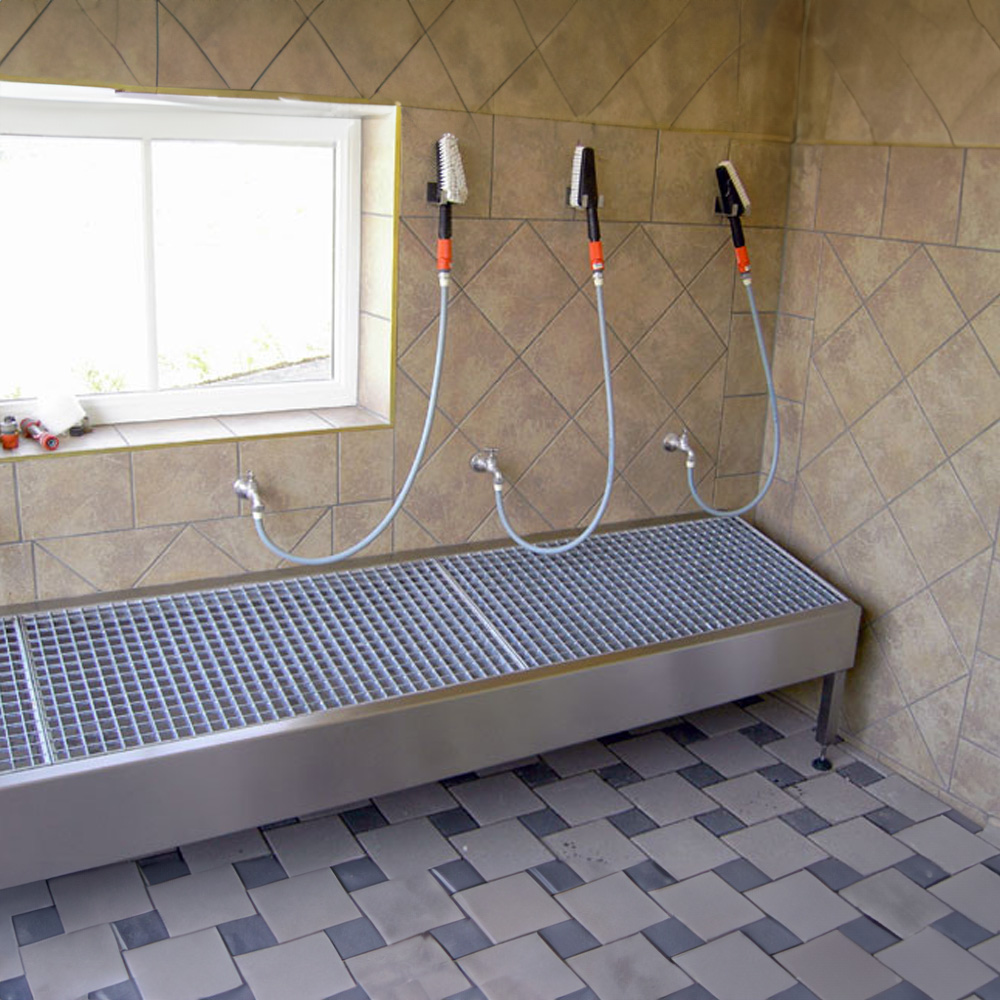

To clean dirty footwear, boots and shoes can be conveniently placed on the grating of the wash trough. Using hand brushes and externally supplied water , the shoes are cleaned quickly and thoroughly. The dirty wastewater is collected in the large trough and automatically drained away, preventing the spread of moisture and dirt over a large area. The boot wash trough’s drain can be optionally equipped with a sludge collection bucket and a trap (see Options). For additional protection against splashing water, the boot washer can be equipped with protective walls (see Options).

Our Muli-Rost boot washing station proves its worth every day on countless sports fields, at construction sites, in nurseries, and at manufacturing facilities. Made from high-quality stainless steel, it stands out for its exceptional sturdiness and outstanding durability. Thanks to the removable grating, its functional design, and the use of high-quality materials , cleaning and maintenance requirements are reduced to an absolute minimum.

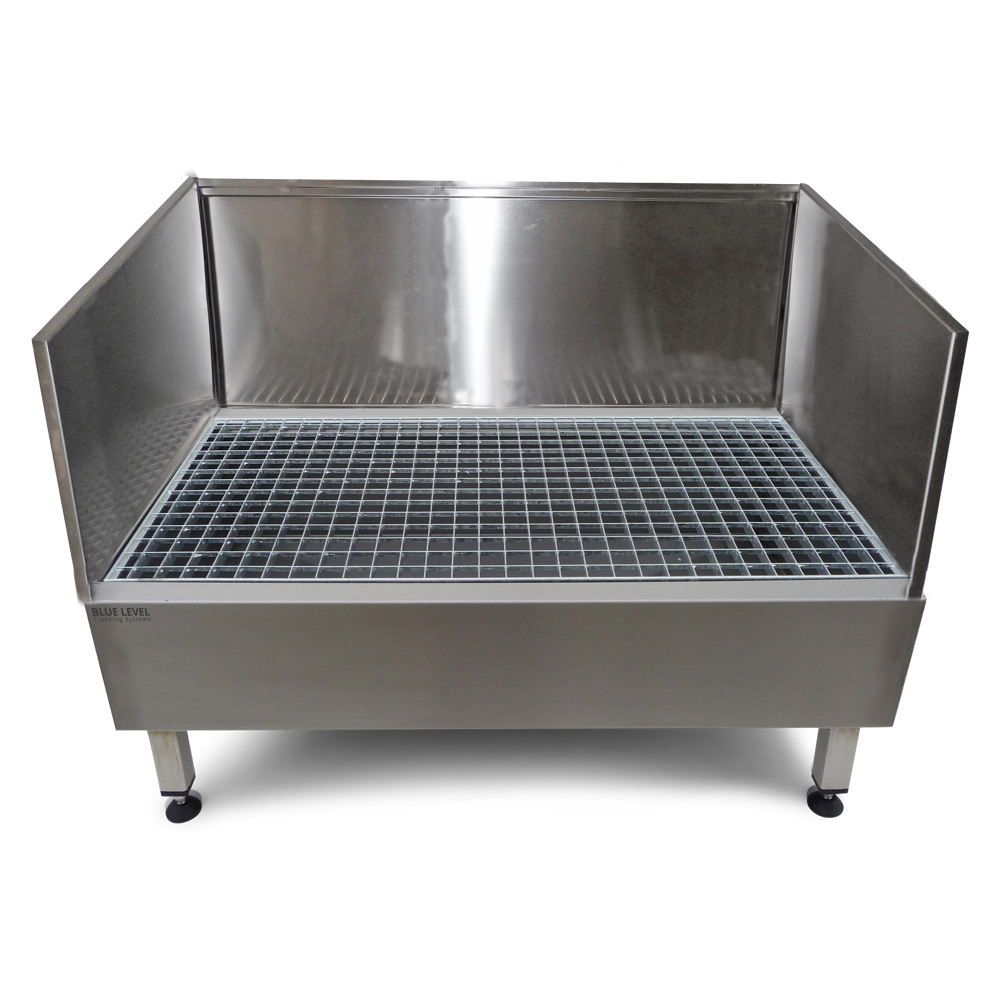

The boot washing station can be optionally equipped with two side splash guards and a rear splash guard. This prevents the area around the wash station, sensitive equipment, and people in the vicinity from getting wet and dirty due to splashing water (see the “Splash guard” option).

In addition, the boot washing station can be equipped, upon request, with a mud-trapping bucket and a drain trap, which protects the drain pipes and prevents unpleasant odors (see the “Additional Options” section).

The water connection must comply with the regulations of the responsible water utility. The European standard DIN EN 1717 serves as the guiding principle, supplemented by national standards. The drinking water installation must be performed exclusively by a licensed specialist contractor. When connecting to the drinking water system, a system separator or pipe separator approved by the building owner must be used (not included in the scope of delivery).
