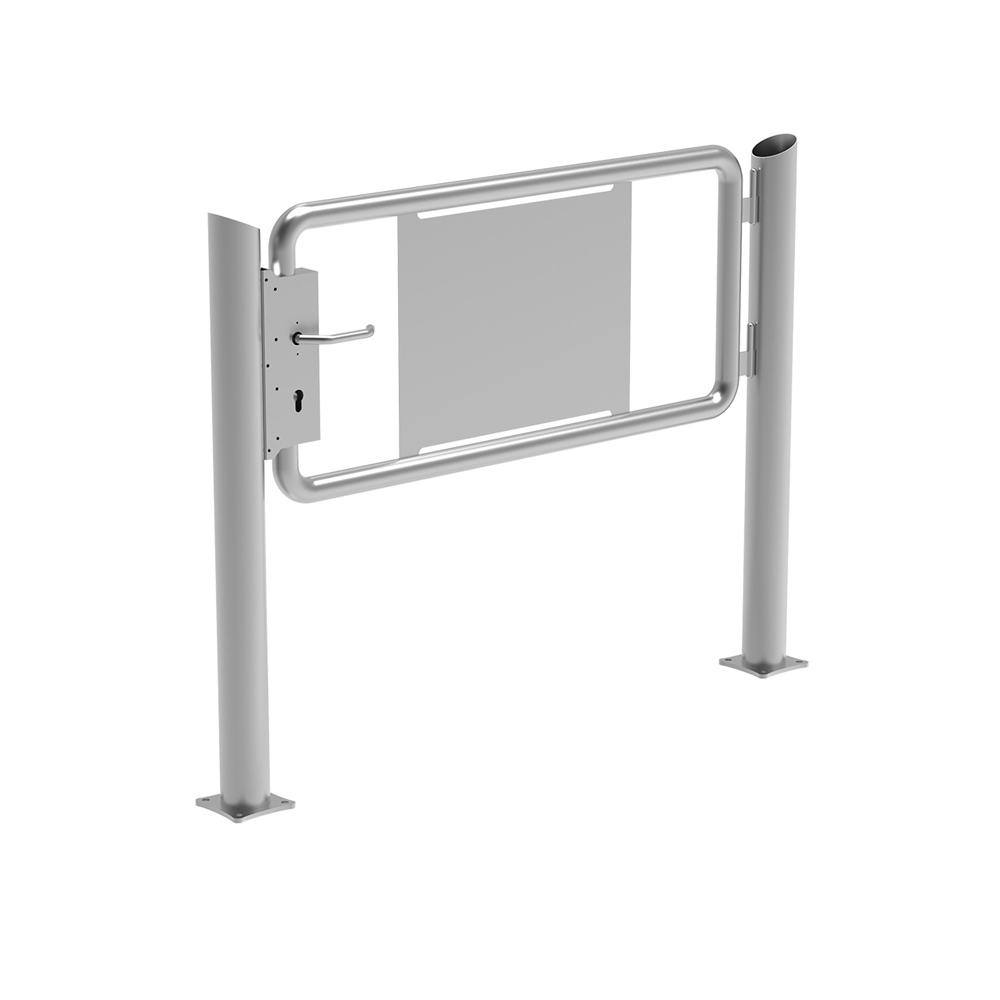

Our stainless steel gate with a Knee rail is an ideal complement to our Entry control devices and/or hygiene stations. Especially in food processing facilities or industrial plants, the stainless steel gate ensures orderly traffic flow and helps ensure compliance with strict hygiene guidelines. When used in combination with hygiene stations, it ensures controlled separation of different hygiene zones and contributes to smooth operational processes. This stainless steel gate is the perfect solution for companies that must meet the highest hygiene and safety standards, and it also facilitates the management of pedestrian traffic.
The stainless steel gate with a Knee rail offers the following impressive features:
- Stainless steel gate for pedestrian traffic
- Made of durable round stainless steel tubing (Ø 42×2 mm, grade 1.4301)
- Available in defined standard sizes for width and height
- Flexible installation with pipe stands that feature a flange for floor mounting
- Available in 3 versions
- Ideal for use in industrial, food processing, and slaughterhouse facilities
- Upon request, the gate can be equipped with handles on both sides
Our stainless steel gate, made of round stainless steel tubing (Ø 42×2 mm, grade 1.4301), is extremely durable and sturdy. Thanks to its high-quality craftsmanship, it is resistant to external influences. Three versions are available: the stainless steel gate with a Knee rail, with a filler plate, or with vertical struts. Upon request, the widths can also be custom-made to meet individual requirements. The gate is equipped with sturdy tubular posts. This design allows for flexible installation and ensures a secure and durable floor mounting.
For convenient operation, the gate comes standard with a latch on one side and an ergonomic knob on the other. Upon request, the gate can be fitted with latches on both sides.
- Housing: 1.4301 stainless steel
- Dimensions (floor mounting):
- 1280 mm x 960 mm (width x height)
- Clear passage width: 1000 mm
- Item Number: EKH-00161
- Dimensions (wall mounting):
- 1280 mm x 960 mm (width x height)
- Clear passage width: 1000 mm
- Item Number: EKH-00171
- Dimensions (floor mounting):
- 1280 mm x 1200 mm (width x height)
- Clear passage width: 1000 mm
- Item Number: EKH-00162
- Dimensions (wall mounting):
- 1280 mm x 1200 mm (width x height)
- Clear passage width: 1000 mm
- Item Number: EKH-00172
- Dimensions (floor mounting):
- 1480 mm x 960 mm (width x height)
- Clear passage width: 1200 mm
- Item Number: EKH-00163
- Dimensions (wall mounting):
- 1480 mm x 960 mm (width x height)
- Clear passage width: 1200 mm
- Item Number: EKH-00173
- Dimensions (floor mounting):
- 1480 mm x 1200 mm (width x height)
- Clear passage width: 1200 mm
- Item Number: EKH-00164
- Dimensions (wall mounting):
- 1480 mm x 1200 mm (width x height)
- Clear passage width: 1200 mm
- Item Number: EKH-00174
- Flange plate: 120 mm x 120 mm x 8 mm
