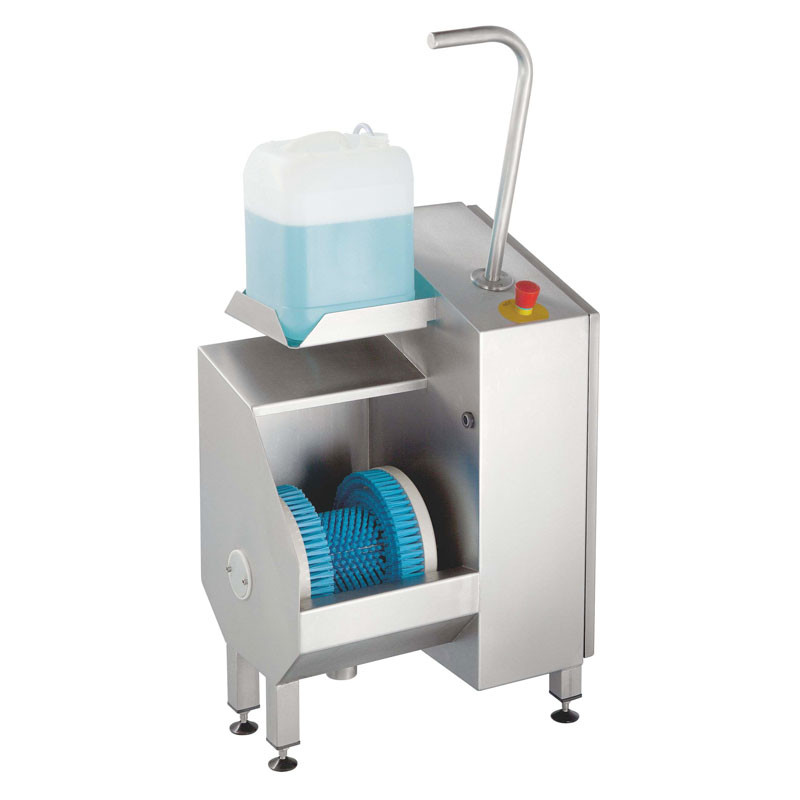

The Wand Sole Cleaning Machine is a compact and efficient machine for cleaning shoe soles and sole edges. The sole cleaning machine is ideal for hygienically impeccable sole cleaning in smaller production facilities in the food and pharmaceutical industries, as well as in other sectors with strict hygiene regulations.
The sole cleaning machine is equipped with a specially shaped brush featuring high-quality nylon bristles for cleaning the soles of boots, work shoes, and clogs. The design of the round brush allows for simultaneous disinfection of both the soles and the edges of the shoes. The machine is made of high-quality 1.4031 stainless steel and features an extremely robust construction. This sole cleaning machine for the hygienic area is suitable for the soles of all common types of footwear in manufacturing facilities and the healthcare sector.
The Wand sole cleaner stands out for the following features:
- Thorough machine cleaning of the soles.
- Integrated dosing pump for cleaning agents.
- Minimal energy consumption and maintenance requirements.
- Sensor-controlled.
- With a built-in canister holder.
- Made of finely polished stainless steel.
To start the sole cleaning machine, the employee places their foot on the nylon brush. The sensor mounted in the housing detects the movement and starts the powerful motor. The cleaning solution is dispensed by an adjustable metering pump, which is also triggered by the sensor.
The employee can then rub their shoe against the nylon bristles of the rotating round and disc brushes. The brush arrangement allows for simultaneous cleaning of the soles and the edges of the soles. A support bar attached to the sole-cleaning device ensures stability during shoe cleaning.
The Wand sole cleaner is ready to connect, but the siphon, gaskets, and small parts are not included in the package.
- Construction: Stainless steel
- Dimensions:
- 580 mm x 419 mm x 1105 mm (width x depth x height)
- Water inlet: 3/4"
- Water outlet: DN 50
- Water pressure: 4–6 bar
- Starter: Sensor in the housing
- Power connection at 230 V: 1 x 230 V / N / PE; 50 Hz
- Power connection at 400 V (optional): 3 x 400 V / N / PE; 50 Hz
- Power: 0.25 kW
- Protection class: IP 65
- Weight: 30 kg
- Warranty: 2 years
