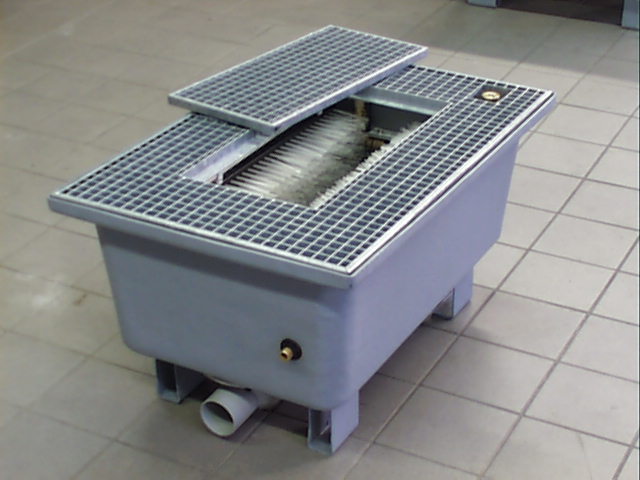

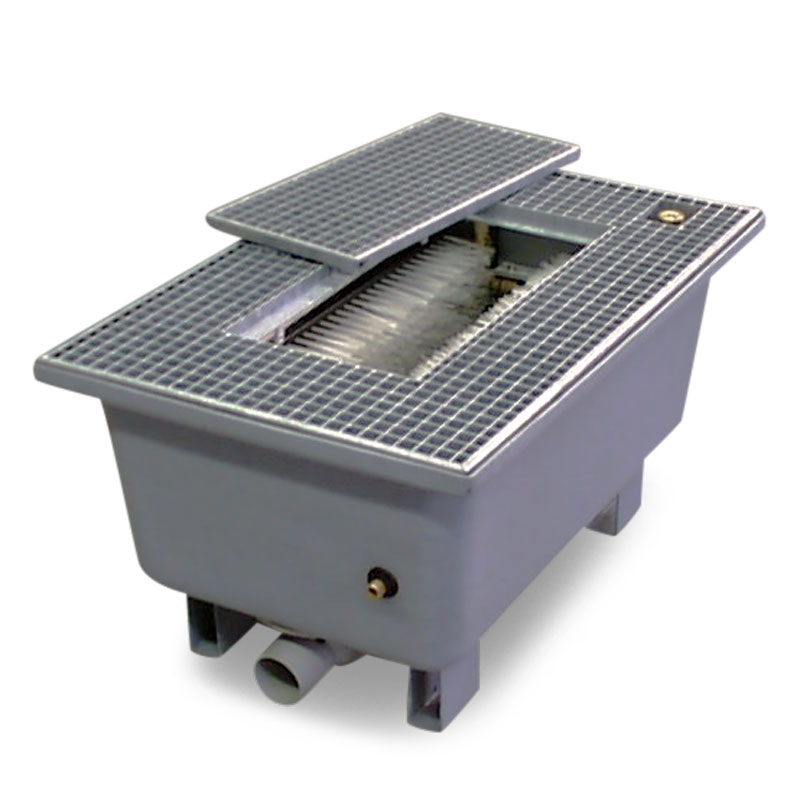

Stationary boot washer for flush-mounted or partially recessed installation in floors for fire stations, military barracks, commercial facilities, and farms. Our best-selling stationary boot washer!
- Recessed mounting tray made of glass-fiber-reinforced plastic (GFRP)
- Hot-dip galvanized mounting frame with a coarse sole brush
- 2 side brush strips for optimal cleaning of footwear up to the ankle area
- Suitable for ankle-high work shoes due to the low-profile brush arrangement

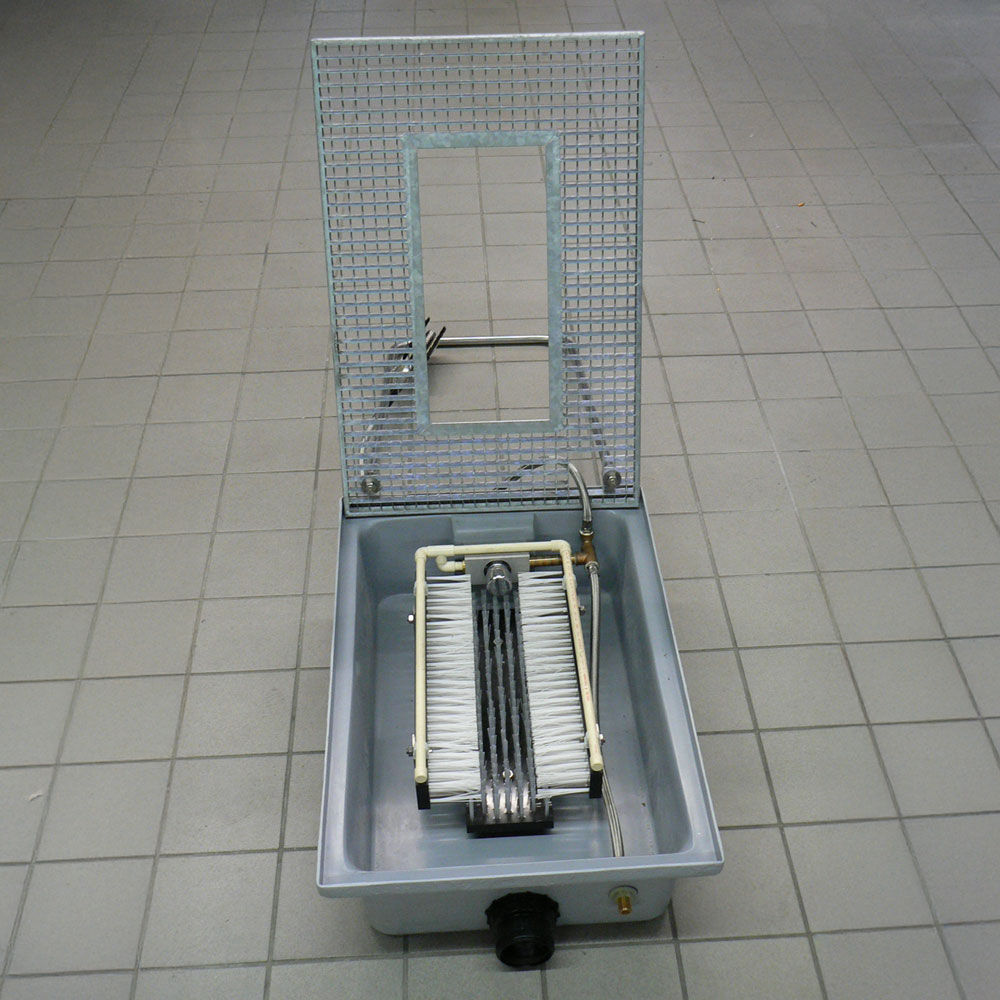

- Hot-dip galvanized hinged grating
- Hot-dip galvanized grates to cover the brush opening (allowing full access)
- Water valve (with automatic timer) for foot operation supplies water to the spray bars mounted on the side

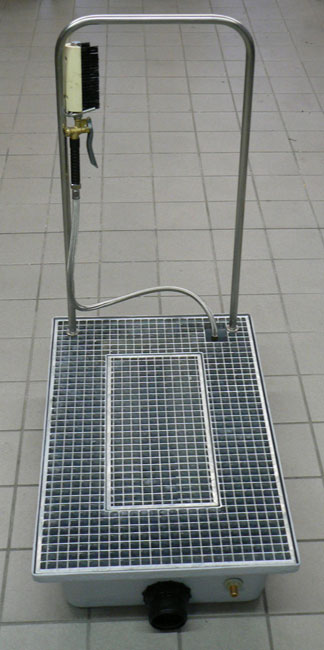

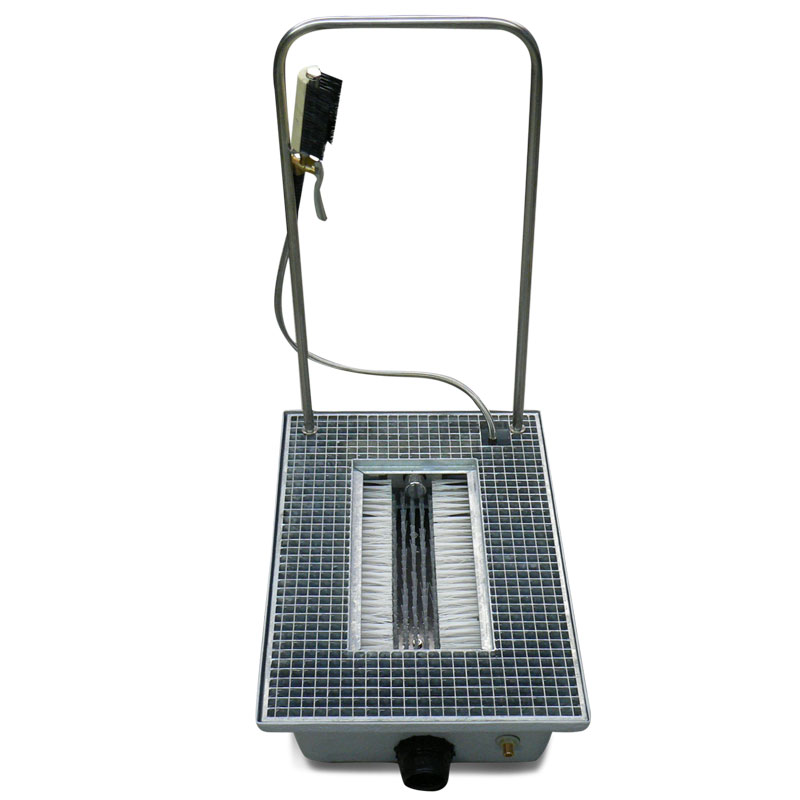

- Comes with a water-fed hand brush and a stainless steel mounting bracket
- No power required!
The boot washer can be installed at floor level (fully recessed), partially recessed, or on top of the finished floor (see Accessories: Mounting frame for surface-mounted version).
There is no risk of accidents with ground-level installation, as the fully enclosed boot washer eliminates any tripping hazards. Stability during use is ensured by a stainless steel support bracket attached to the unit.
The boot washer ensures optimal cleaning of footwear with a stiff sole brush and two softer side brushes. An automatic water shut-off valve is mounted at the front of the basin and is activated by the tip of the foot. When the user presses the button with the tip of their shoe or boot, water flows to the spray nozzle strips for 15 seconds (factory setting).

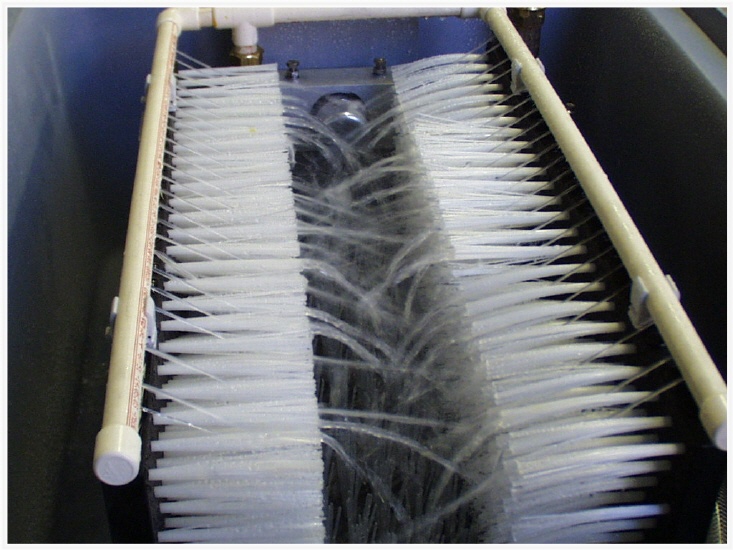

Water is sprayed onto the bristles and footwear from all sides through small spray nozzles. When the foot, still in the shoe, is rubbed against the lower and side brushes, the dirt comes off effortlessly. A drain mounted beneath the basin—optionally equipped with a mud trap and odor trap (Version 3)—allows water to drain and prevents unpleasant odors from the drainage system. The foot valve has a flow duration that can be adjusted in steps of 7, 15, and 30 seconds. This allows for optimal water conservation.
The water connection must comply with the regulations of the responsible water utility. The European standard DIN EN 1717 serves as the guiding principle, supplemented by national standards. The drinking water installation must be performed exclusively by a licensed specialist contractor. When connecting to the drinking water system, a system separator or pipe separator approved by the building owner must be used (not included in the scope of delivery).
- Housing: glass-reinforced plastic tray, hot-dip galvanized inserts
- Grate: steel, hot-dip galvanized
- Dimensions: (Version: with 324 mm installation depth)
- 581 mm x 886 mm x 324 mm (width x depth x height)
- Item number: STW-00041
- Dimensions: (Version: with 220 mm installation depth)
- 581 mm x 886 mm x 220 mm (width x depth x height)
- Item number: STW-00042
- Dimensions: (Version: with sludge trap and odor trap)
- 581 mm x 886 mm x 445 mm (width x depth x height)
- Item number: STW-00043
- Water inlet: R 1/2"
- Water outlet: front (see illustration), DN 70
- Power connection: not required
- Weight: 48 kg net
- Warranty: 2 years
