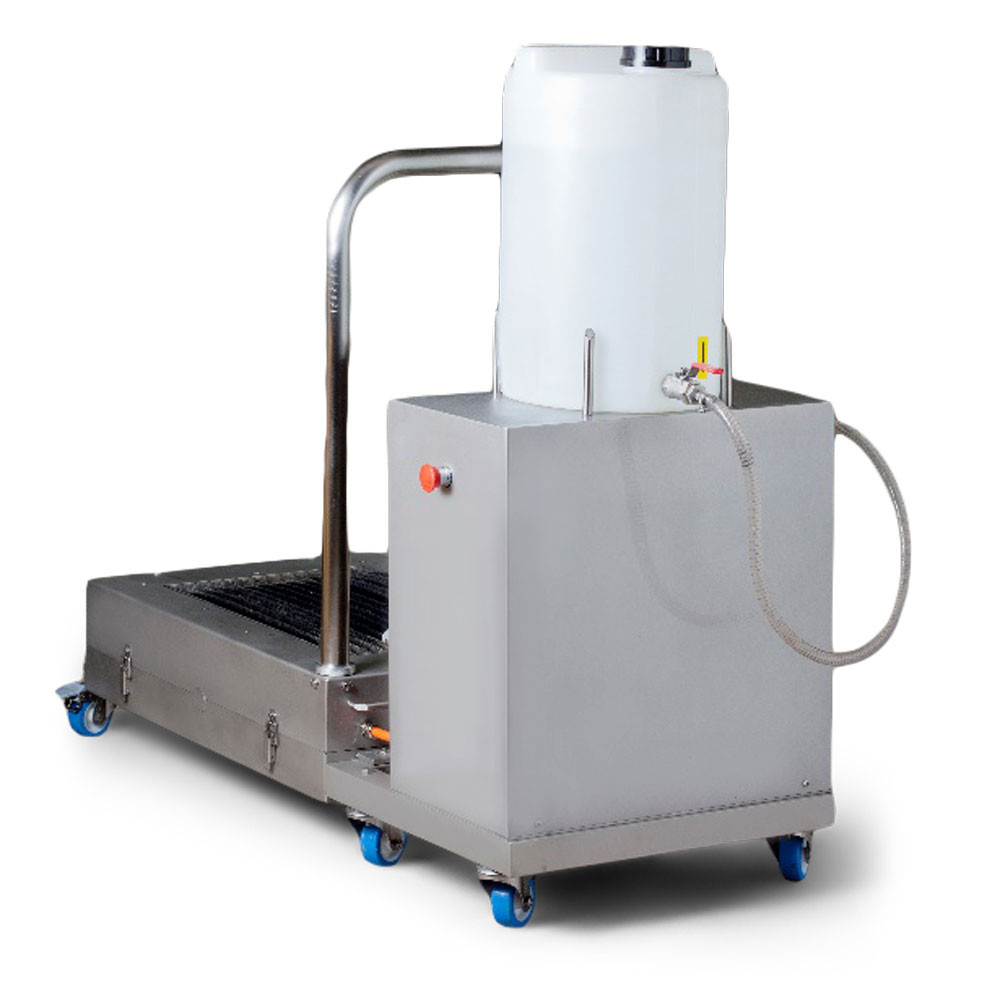

Sole cleaning machine with spray disinfection that does not require a water connection

In the food and pharmaceutical industries, clean boot and shoe soles play an important role. In production facilities with strict hygiene requirements, the majority of contamination occurs through the spread of germs via foot traffic. With the help of one of our sole-cleaning stations, the transfer of dirt and germs can be reliably prevented. The NASS 500 sole cleaning machine is ideal for small to medium-sized production facilities that need a simple, efficient, and hygienically sound solution for sole disinfection.

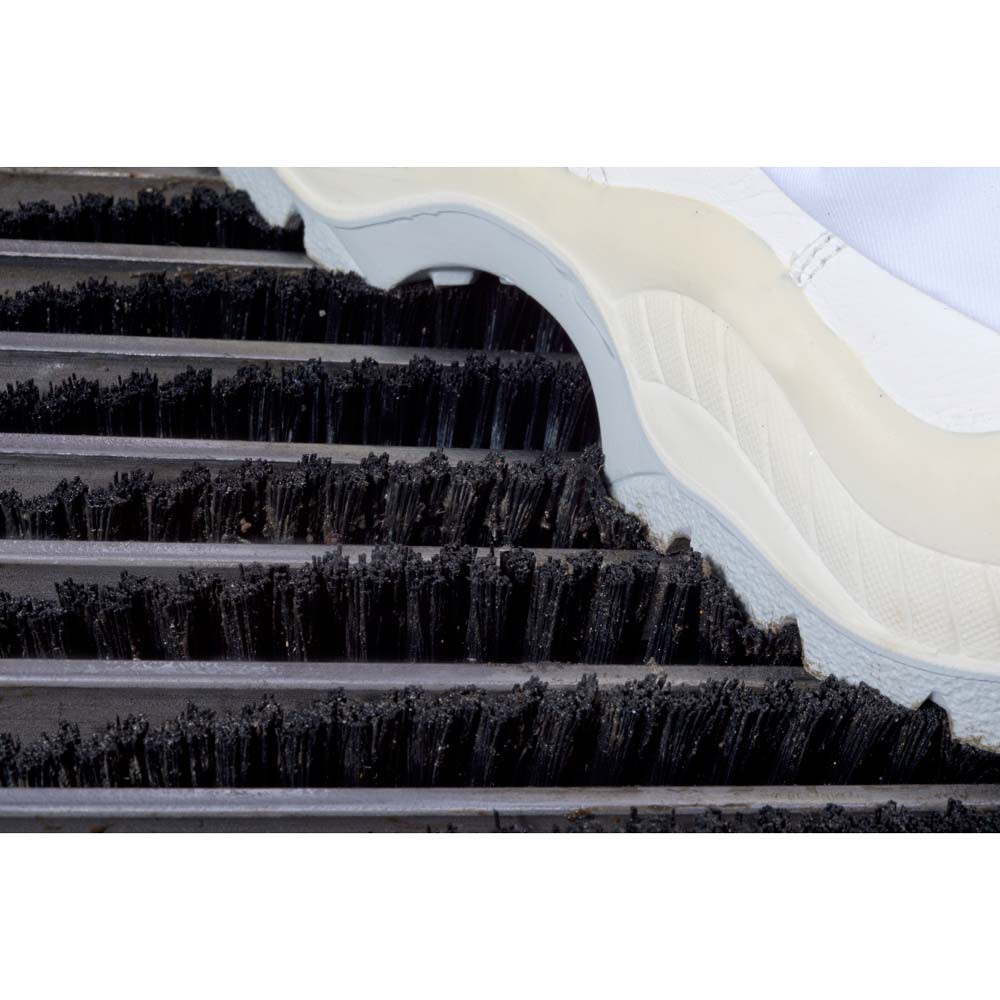

This sole cleaner stands out above all for its unique brush system. The counter-rotating brush strips reliably remove all debris, dust, etc., from the soles and edges of shoes in just a few moments. The extremely durable brush strips are fitted with high-quality, stiff nylon bristles and clean themselves automatically thanks to the ingenious brush system. During the sole-cleaning process, the nylon bristles are moistened with a disinfectant solution, which effectively prevents the spread of germs.

The NASS 500 sole cleaning machine stands out for its professional cleaning and disinfection of shoe soles thanks to the following features:

• Automatic stainless steel sole cleaners.
• Professional and hygienically impeccable sole cleaning.
• Housing made of high-quality stainless steel.
• Durable, sturdy construction.
• Stable footing thanks to the stainless steel support bar.
• With a unique brush system
• 22 mm wide brush strips with stiff, short nylon bristles.
• Powerful motor for optimal cleaning performance of the brushes.
• Start the sole cleaner using the foot switch.
• Automatic cleaning of the brushes using built-in counter-brushes.
• Brush belts are automatically moistened with disinfectant solution.
• A special brush system requires only a very small amount of disinfectant.

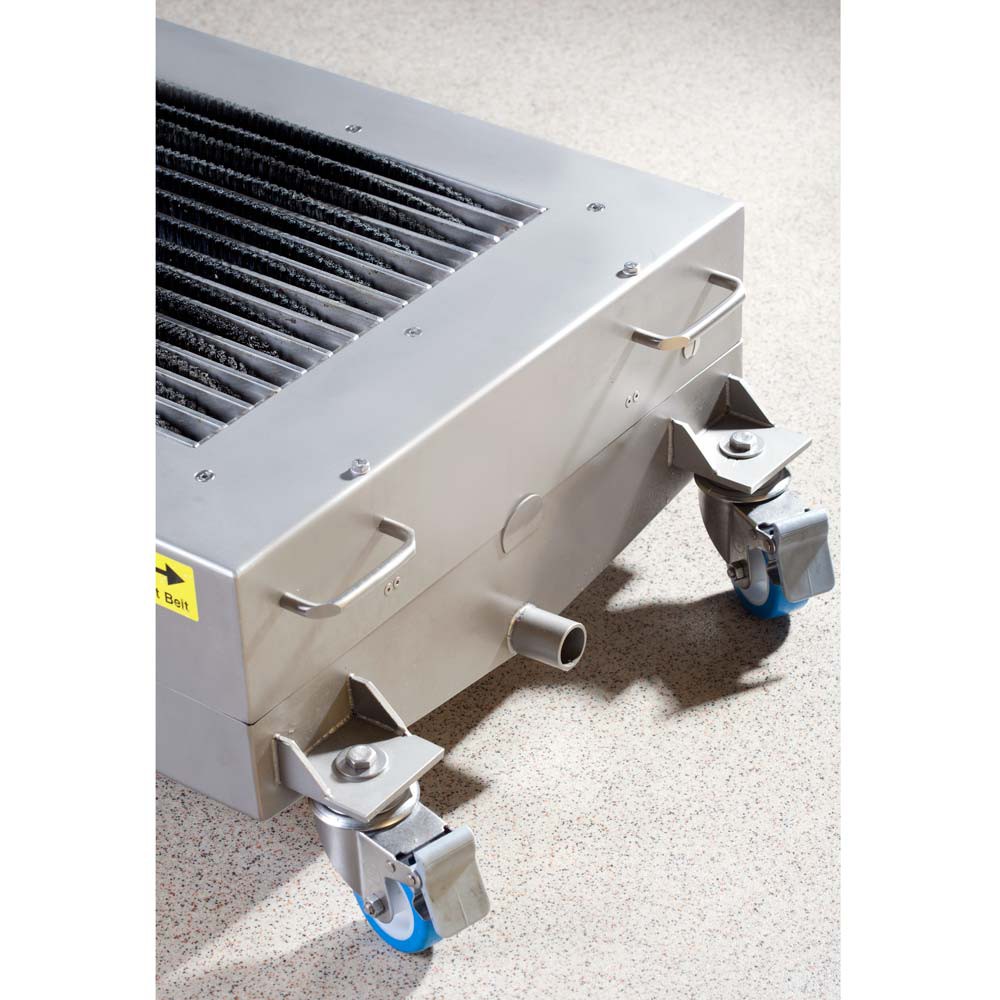

• Large collection basin for scraped-off dirt and liquid.
• Thanks to the hinged design, the basin is easy to access and clean.
• The machine is easy to clean and can simply be hosed down with water.

The sophisticated brush system offers many advantages over traditional systems with round and roller brushes, which rely on long bristles: The use of very short, stiff bristles extends the service life of the nylon brushes. In addition, maintenance and cleaning requirements are very low compared to long-bristled brushes. The most important advantage, however, is that the brush strips require very little disinfectant. To achieve a thorough and hygienically sound cleaning, the counter-rotating brush strips need only be lightly moistened, which prevents the spread of moisture and thus slippery floors in the production area.

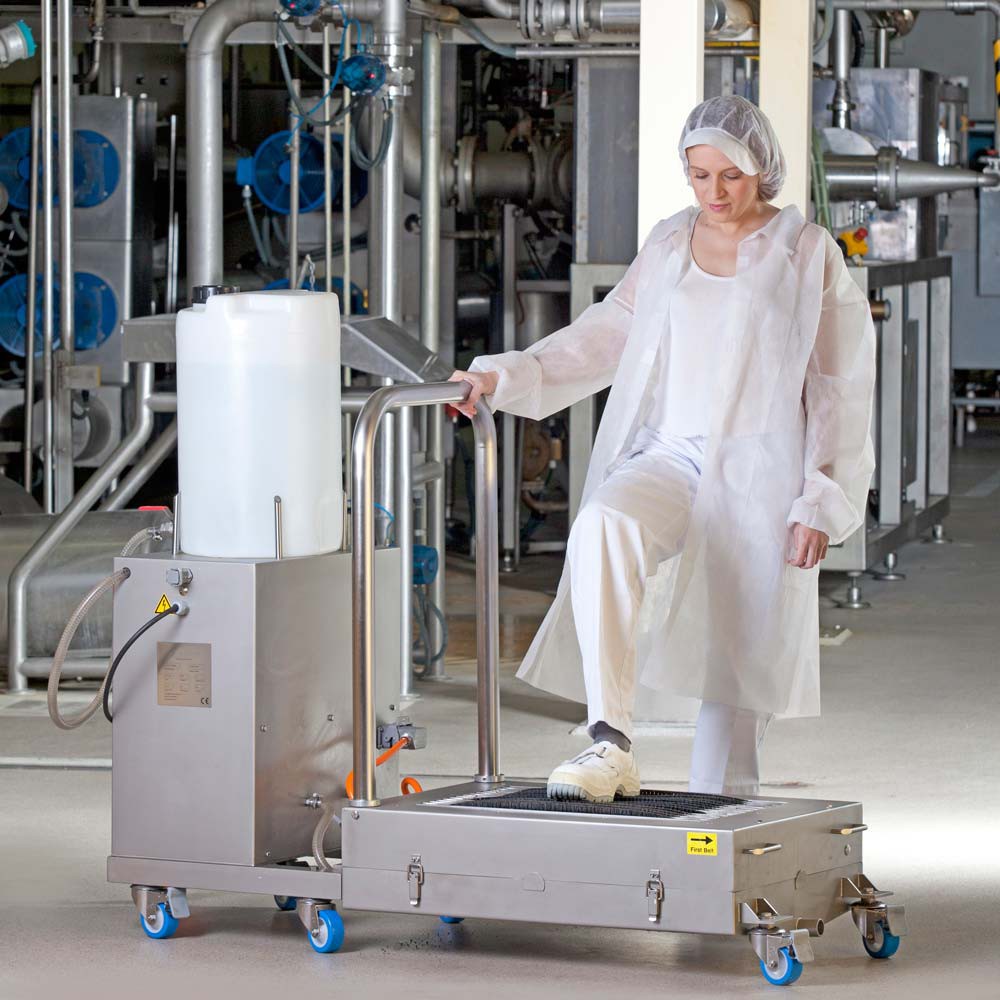

When an employee approaches the sluice for sole cleaning, they can press the foot pedal to start the powerful motor. This triggers the rotation of the brush strips, which move back and forth like a conveyor belt. Adjacent brush strips always run in opposite directions. This side-to-side motion scrubs away all debris from the soles and edges of the shoes. The nylon bristles are automatically moistened with the disinfectant solution, thoroughly disinfecting the soles as well. Within a few seconds, the soles of clogs, work shoes, or boots are perfectly clean, and the employee can enter the sensitive production areas with confidence. A sturdy stainless steel handrail ensures a secure footing throughout the sole cleaning process.

The special strip brushes are automatically and thoroughly cleaned inside the machine. After the dirt has been removed from the soles of the shoes, integrated counter-brushes reliably remove the dirt from the stiff nylon bristles before the brush is sprayed again with the disinfectant solution . The removed dirt and moisture are collected in a spacious collection tray located beneath the brushes. Thanks to the machine’s hinged design, the stainless steel tray is easily accessible and can be quickly emptied and cleaned. Made from the finest stainless steel and high-quality components, this shoe-sole cleaning station is extremely robust and durable. Maintenance is kept to an absolute minimum thanks to easily accessible components and the fact that the unit can simply be hosed down with water.
