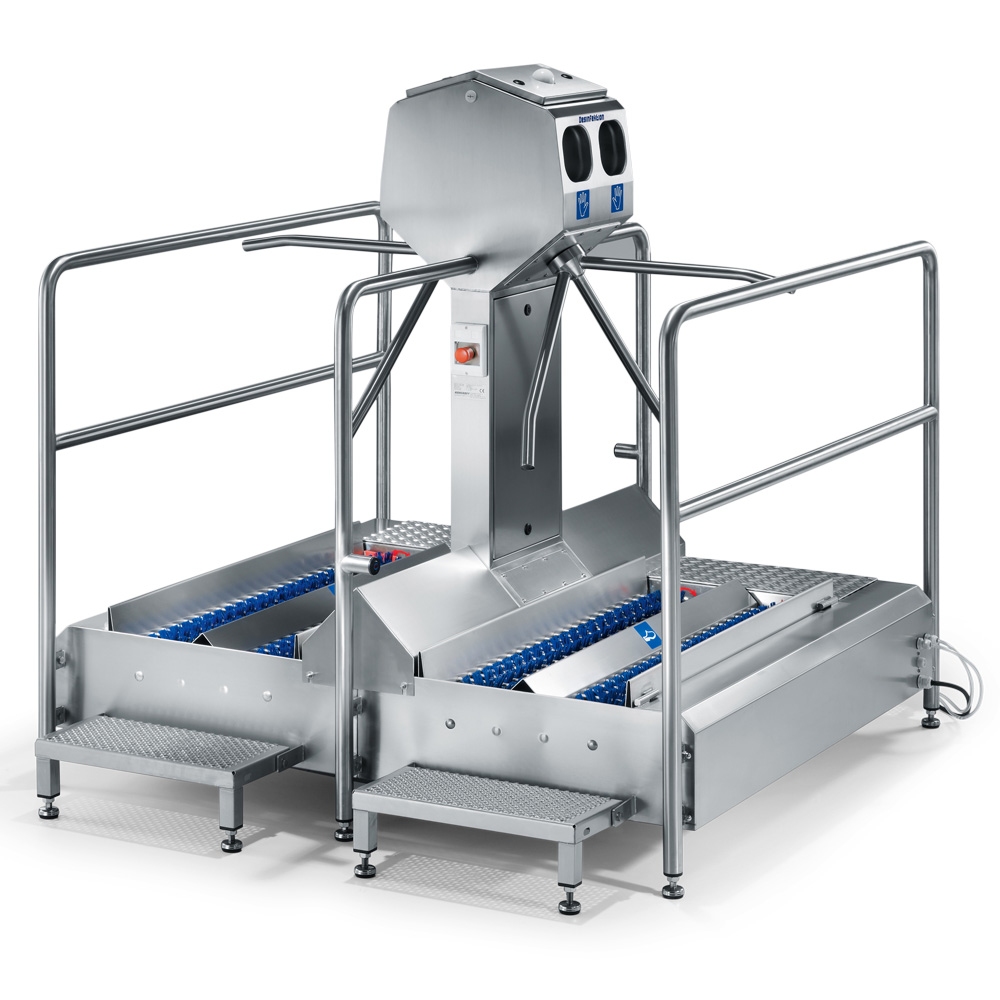

ECO Compact Double-Lane Hygiene Station

The ECO Kompakt Dual-Lane Hygiene Station is particularly popular in small and medium-sized businesses with high foot traffic during peak hours. Suitable applications include food production facilities, slaughterhouses and meat-processing plants, as well as facilities in the pharmaceutical industry. This dual-lane hygiene station is equipped with two double-lane entry control devices operating in the same direction, each featuring a stainless steel turnstile and a tamper-proof two-hand disinfection system. The soles are wet-cleaned by two continuous-action sole cleaners, each equipped with 1,100 mm-long nylon round brushes.

Thanks to the use of high-quality, finely polished stainless steel and state-of-the-art components, this dual-lane hygiene station is ideal for high-volume use with a large number of employees. With its uniquely efficient operation, it ensures reliable compliance with the highest hygiene standards. The entire airlock is controlled automatically via sensors. The brush rollers can be easily removed without tools, making maintenance and cleaning of the “ECO Compact Dual-Lane Hygiene Station” particularly convenient.

The ECO Kompakt Double-Lane Hygiene Sluice stands out for the following features:

• Double-lane, same-direction hygiene station—equipped on both sides with a brush roller module, hand sanitizer dispenser, and electric turnstile
• For twice as many clean shoe soles and disinfected hands
• Prevents the spread of contaminants, germs, and bacteria
• 2 extra-sturdy automatic turnstiles for access control
• Mechanical cleaning through the rotation of the brush rollers
• Chemical support through the addition of cleaning and disinfecting agents
• Ideal for removing lubricants, foreign objects, and oils from the soles of shoes
• High-quality nylon bristles and adjustable brush length (see options)
• The operating time of the brush rollers can be adjusted as desired
• Adjustable automatic detergent dispensing
• A canister holder for sole cleaning is available as an accessory (see Accessories below)
• Easy maintenance, as all functional parts are easily accessible through access panels
• Quick and easy cleaning of the brush rollers, as they can be removed without tools
• Very sturdy, height-adjustable stainless steel screw feet
• Starter: Input and output-side photoelectric sensors
• Emergency Stop Button
• Multicolor LED signal display with traffic light symbols

This compact, dual-lane turnstile with a single direction of travel ensures the thorough removal of oils and other lubricants from the soles of clogs, shoes, and boots, as well as high standards of hand hygiene. Upon entering the hygiene station, users place their hands in the designated opening in the automatic turnstile housing. Tamper-proof sensors then verify hand placement and dispense the preset amount of disinfectant onto the palms via cone-shaped nozzles. Once hand disinfection is complete, passage through the stainless steel turnstile is granted. Two LED indicators in a traffic-light design signal that hand disinfection has been completed.

The soles of shoes are cleaned automatically and simultaneously. The 1100 mm-long bristles of the two high-quality nylon brushes reach through the grate and thoroughly clean the soles of shoes and boots using a cleaning solution. The rotation of the roller brushes is triggered by a sensor, and the amount of cleaning solution can be adjusted to suit your preferences and individual usage. If needed, 3 different canister holders for sole cleaning are available as accessories (see below): 24 L wall-mounted, 24 L freestanding, and 20/25 L lockable.

The sole cleaner is made entirely of high-quality stainless steel with finely polished surfaces. Thanks to the convenient design, which allows all internal components to be easily accessed through maintenance hatches, the machine can be cleaned and maintained quickly and easily. In addition, the bristles of the single-track double hygiene sluice can be removed for cleaning in just a few simple steps without the need for tools.

The “ECO Compact Double-Track Hygiene Station” is ready for assembly and connection upon delivery; however, the siphon, backflow preventer, gaskets, small parts, and on-site installation are not included in the price. We recommend that a local plumbing company perform the simple installation according to our instructions. Delivery is made on a pallet by truck to the curb.
