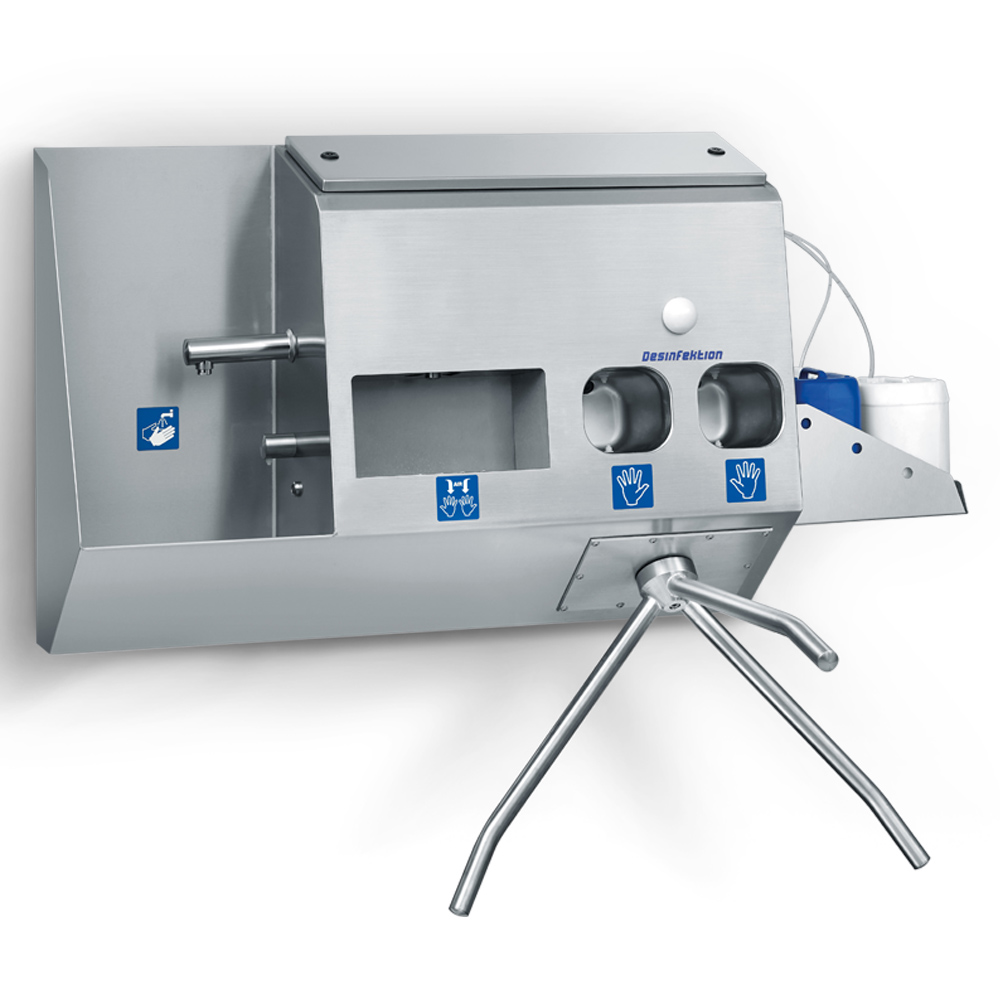

The ECO Kompakt II hygiene station, which includes hand washing, hand drying, disinfection, and subsequent sole cleaning, is very popular because it handles the entire hand-cleaning process—right through to hand disinfection—without using any paper. In addition, two rotating brushes ensure quick cleaning of the shoe soles. The three components for hand washing, drying, and disinfection are linked by a rotary lock.

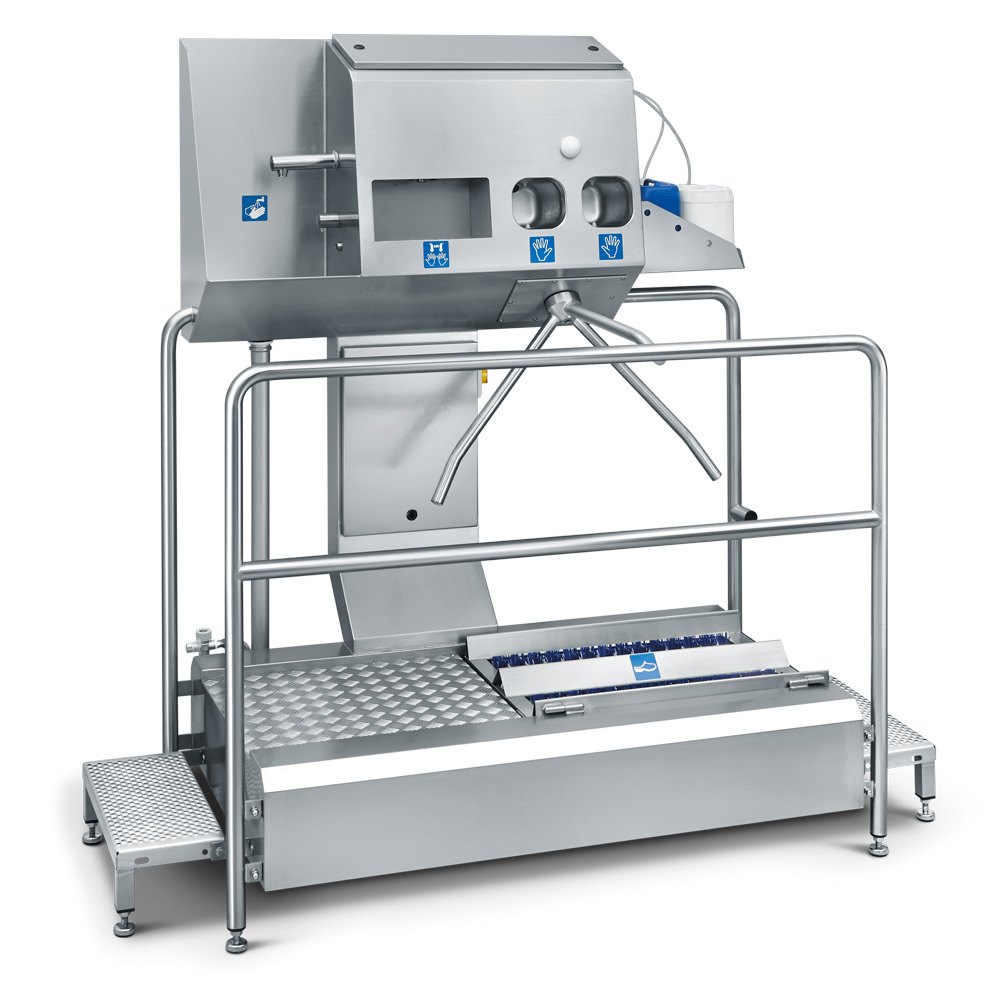

ECO Kompakt II hygiene station with a sole cleaning module and an entrance control with a hand wash basin, hand dryer, and hand disinfection for the hygiene area, made of 1.4301 stainless steel!
- Cleaning the Soles of Clogs, Shoes, and Boots
- Easy maintenance, as all functional parts are easily accessible through access panels
- Quick and easy cleaning of the brush rollers, as they can be removed without tools
- Adjustable operating time of the brush rollers
- High-quality bristles
- Hand wash basin/trough equipped with an automatic soap dispenser and sensor
- High-Speed Hand Dryer
- Foolproof Two-Hand Sanitizing
- With a built-in holder for hand sanitizer and liquid soap
- A canister holder for sole cleaning is available as an accessory (see Accessories below)
- Access Control with LED Indicator (Red-Yellow-Green)
- With built-in turnstile (without damping)
- Particularly environmentally friendly thanks to the elimination of paper
- Emergency Stop Button
Procedure for Using the ECO Kompakt II hygiene station
At the start, the indicator LED lights up red. This indicates that the device is ready for use.
1. In the touchless washing area, the soap dispenser first automatically mixes soap into the water. Then clean water flows.
2. An automatic high-speed hand dryer then dries your hands hygienically, thoroughly, and in an environmentally friendly way in less than 10 seconds.
3. The user then places their hands inside the sanitizing station. The automatic sensors activate four nozzles that spray the hands with sanitizer. The indicator LED then changes from yellow to green.
4. The passage is cleared, and the turnstile can be passed through. Afterward, the indicator LED turns red again. As users pass through, two horizontal, rotating brushes—covered by a stainless steel grate—ensure quick and efficient cleaning of the soles of their shoes. The brushes are sprayed with a water-cleaning mixture as people walk through.
Its sturdy construction allows for quick and thorough cleaning of hands and soles with minimal time and effort. The side-mounted dispenser holder for hand sanitizer and liquid soap is included as standard. If needed, three different dispenser holders for sole cleaning are available as accessories (see below).
The ECO Kompakt II hygiene station, which includes a hand-washing sink, hand dryer, and sanitizer, is delivered fully assembled and ready for connection; however, the siphon, backflow preventer, gaskets, small parts, and on-site installation are not included in the price. Installation is very simple—just follow our instructions—and can be performed, for example, by a local plumbing company. The unit is delivered on a pallet by truck to the curb.
- Construction: 1.4301 stainless steel
- Dimensions: (Version: Brush length 700 mm)
- 1500/2100 mm x 975 mm x 2020 mm (length x width x height)
- Machine length: 1500 mm
- Brush length: 700 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00021
- Dimensions: (Version: Brush length 1100 mm)
- 1500/2100 mm x 975 mm x 2020 mm (length x width x height)
- Machine length: 1500 mm
- Brush length: 1100 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00022
- Water inlet: 3/4"
- Water drain: DN 50
- Starter: Sensor
- Power connection: 400 V/N/PE; 50/60 Hz
- Power: 4.0 kW
- Protection Class: IP 65
- Machine control voltage: 230 V
- Control voltage for hand disinfection: 24 V
- Control voltage for turnstile actuator: 24 V
- Hand dryer control voltage: 230 V
- Weight (brush length 700 mm / 1100 mm): 196 / 205 kg net
- Warranty: 1 year
