The ECO Kompakt hygiene station, featuring a continuous-flow sole cleaner and commercial hand wash sink, is ideal for facilities with 20–30 employees per shift. The high-quality yet affordable modules in the ECO series were designed specifically for smaller facilities.

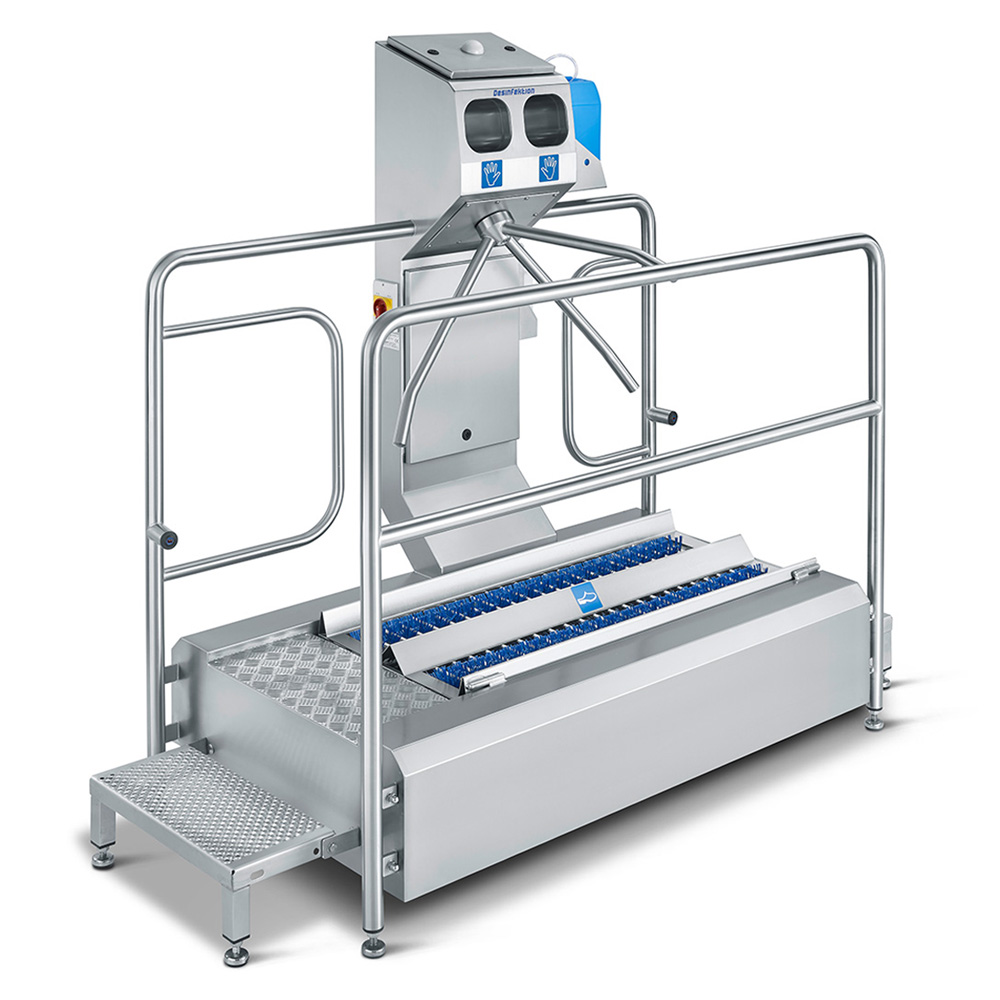

ECO Kompakt hygiene station with a sole cleaning module and automatic hand disinfection, made of 1.4301 stainless steel!
- With built-in turnstile (without damping)
- Foolproof Two-Hand Sanitizing
- The amount of detergent can be individually adjusted using the dosing system
- Cleaning the Soles of Clogs, Shoes, and Boots
- Surfaces finely sanded
- Easy maintenance, as all functional parts are easily accessible through access panels
- Quick and easy cleaning of the brush rollers, as they can be removed without tools
- Sturdy, height-adjustable stainless steel screw-in feet
- High-quality bristles
- Adjustable operating time of the brush rollers
- Control of the brush drive via a sensor at the entry and exit points
- Access Control with LED Indicator (Red-Green)
- With a built-in holder for hand sanitizer and liquid soap
- A canister holder for sole cleaning is available as an accessory (see Accessories below)
- Emergency Stop Button
Two horizontal, rotating brushes, covered by a stainless steel grating, ensure quick cleaning of shoe soles. The brushes are sprayed with a water-cleaning solution as people walk over them. The brush runtime is adjustable. The system is activated by sensors at the entrance and exit. To ensure optimal hygiene, this machine has been equipped with the “ECO Entry control for hygiene stations” (see product image).
This hygiene station consists of a tamper-proof two-hand hand disinfection system combined with a turnstile that is unlocked once hand disinfection is complete. The side-mounted dispenser holder for hand sanitizer and liquid soap is included as standard. If needed, three different canister holders for sole cleaning are available as accessories (see below).
The ECO Kompakt hygiene station with a continuous-flow sole cleaner and commercial hand wash sink is delivered fully assembled and ready for connection; however, the siphon, backflow preventer, seals, small parts, and on-site installation are not included in the price. Installation is very simple—just follow our instructions—and can be carried out, for example, by a local plumbing company. The unit is delivered on a pallet by truck to the curb.
- Construction: 1.4301 stainless steel
- Dimensions: (Version: Brush length 400 mm)
- 800/1400 mm x 975 mm x 1785 mm (length x width x height)
- Machine length: 800 mm
- Brush length: 400 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00271
- Dimensions: (Version: Brush length 700 mm)
- 1100/1700 mm x 975 mm x 1785 mm (length x width x height)
- Machine length: 1100 mm
- Brush length: 700 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00272
- Dimensions: (Version: Brush length 1100 mm)
- 1500/2100 mm x 975 mm x 1785 mm (length x width x height)
- Machine length: 1500 mm
- Brush length: 1100 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00273
- Dimensions: (Version: Brush length 1600 mm)
- 2000/2600 mm x 975 mm x 1785 mm (length x width x height)
- Machine length: 2000 mm
- Brush length: 1600 mm
- Step length at the head end: 2 x 300 = 600 mm
- Item Number: HSE-00274
- Water inlet: 3/4"
- Water drain: DN 50
- Starter: Sensor
- Power connection: 3x400V/N/PE; 50/60 Hz / 16 A
- Power: 0.6 kW
- Protection Class: IP 65
- Machine control voltage: 230 V
- Control voltage for hand disinfection: 24 V
- Control voltage for turnstile actuator: 24 V
- Weight: kg
- Warranty: 1 year
