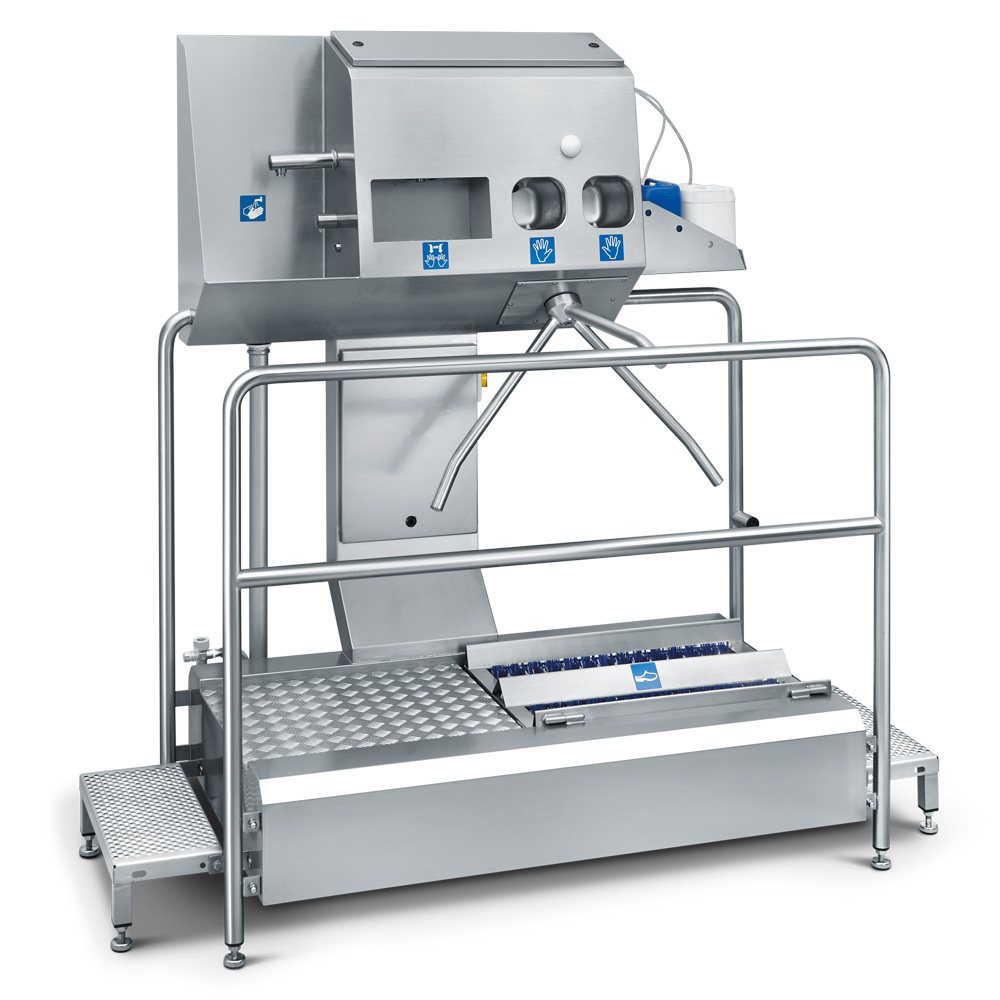

Entrance control with hand wash basin, hand dryer, and hand disinfection for the hygiene area, made of 1.4301 stainless steel!
- Sensor-Activated Hand Wash Basin/Trough
- High-Speed Hand Dryer
- Foolproof Two-Hand Sanitizing
- Access Control with LED Display
- With built-in turnstile (without damping)
- With built-in canister holder
- Adjustable detergent amount
- For an additional charge: Base frame for floor mounting (see Options: Floor-standing version)
The entry control device— which includes a hand wash basin, hand drying, and hand disinfection —is very popular because it handles the entire hand-cleaning process, right through to hand disinfection, without using any paper. The three components for hand washing, drying, and sanitizing are linked by a turnstile.
Sequence for Using the Entrance Control with Hand Wash Basin, Hand Dryers, and Disinfection
At the start, the indicator LED lights up red. This indicates that the device is ready for use.
1. In the touchless washing area, the soap dispenser first automatically mixes soap into the water.
Then clean water flows.
2. After that, an automatic high-speed hand dryer dries your hands in about 10 seconds
—hygienically, thoroughly, and in an environmentally friendly way.
3. The user then places their hands in the sanitizing station. The automatic
sensors activate four nozzles that spray sanitizer onto the hands. The indicator LED
now changes from yellow to green.
4. The passage is cleared, and the turnstile can be passed through. Afterward, the control LED
turns red again.
The device has a side-mounted dispenser holder for hand sanitizer.
The entrance control with a hand wash basin, hand dryer, and sanitizer dispenser is ready for installation; however, the price does not include the siphon, backflow preventer, seals, small parts, or installation.
- Construction: 1.4301 stainless steel

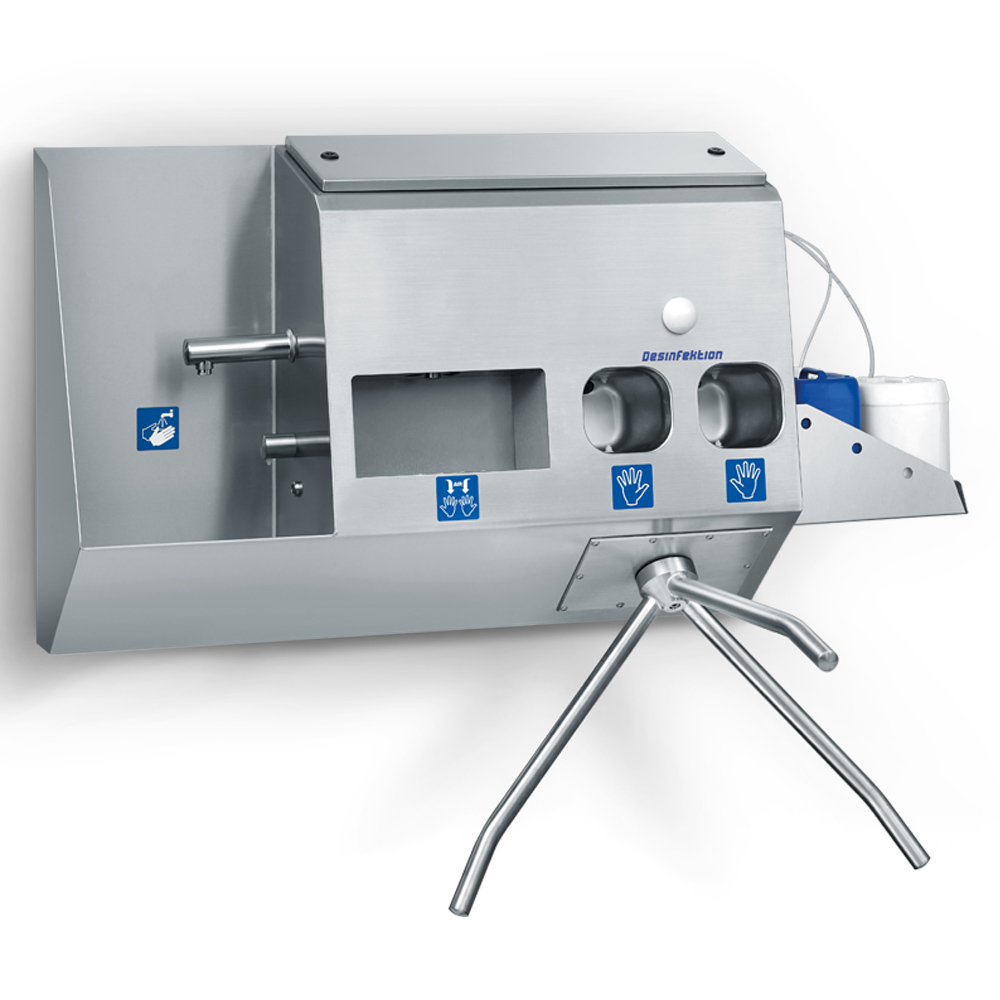

- Dimensions (Version: wall mounting):
- 1200 / 1553 mm x 375 / 864 mm x 800 mm (length x width x height)
- Item Number: EKH-00041

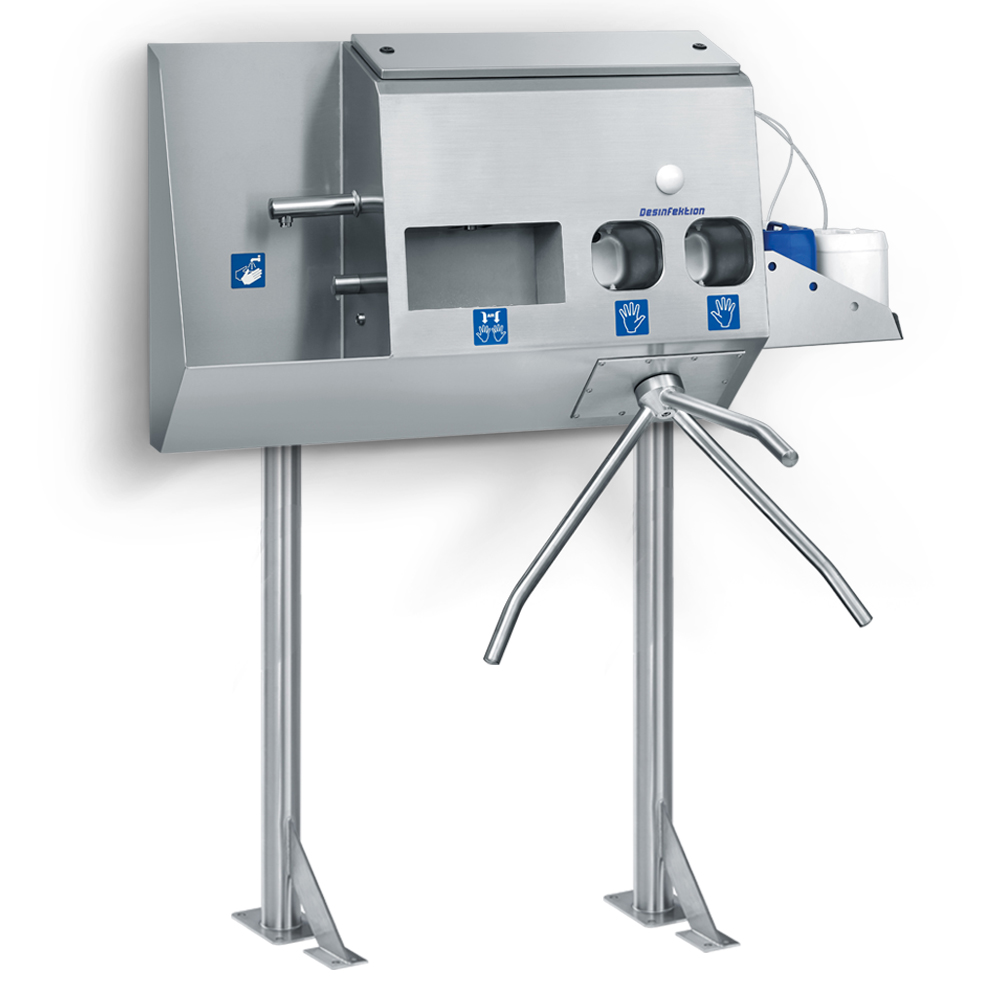

- Dimensions (Model: Floor-standing version):
- 1200 / 1553 mm x 375 / 864 mm x 1625 mm (length x width x height)
- Item Number: EKH-00042
- Water Inlet: Cold Water 1/2", Hot Water 1/2"
- Water drain: DN 50
- Starter: Sensor in the housing
- Power connection: 1x230V/N/PE; 50/60 Hz
- Power: 3.4 kW
- Protection Class: IP 65
- Control voltage for hand disinfection: 24 V DC
- Control voltage for turnstile actuator: 24 V DC
- Weight: kg
- Warranty: 2 years
