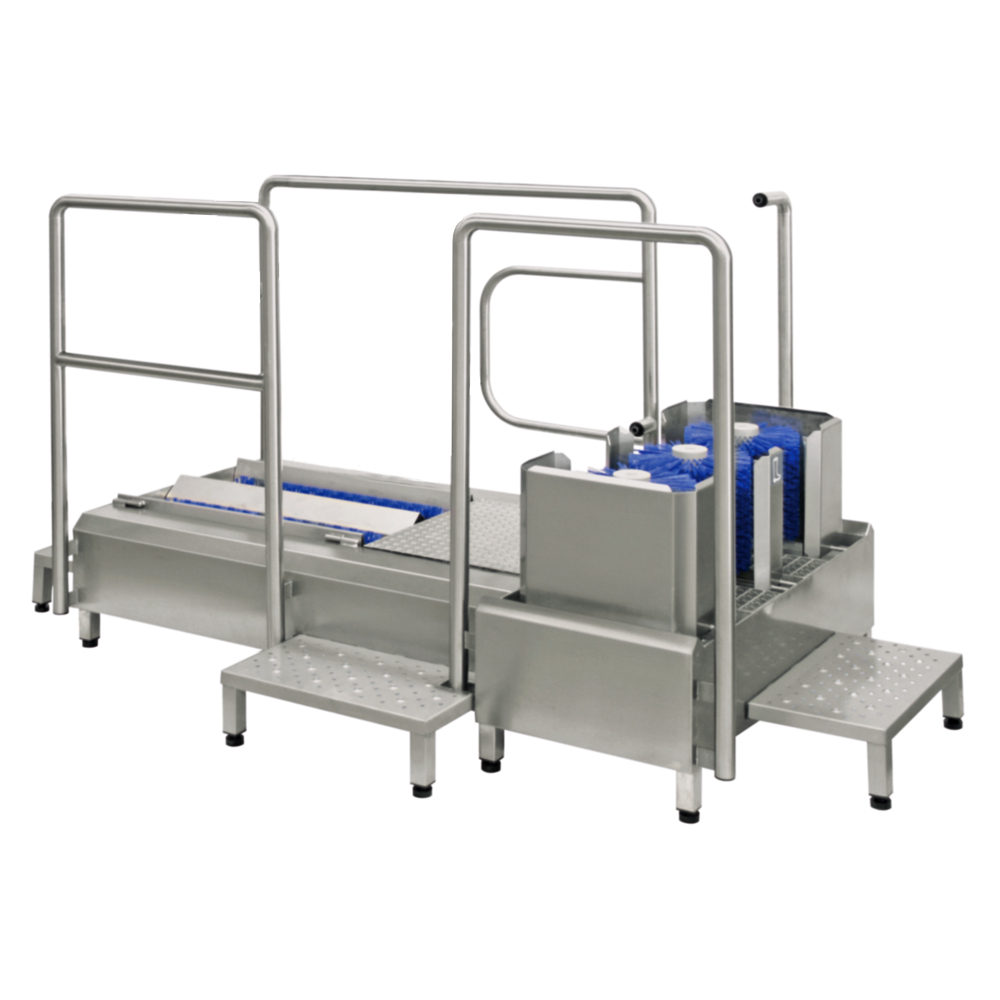

The ECO Sole and Boot Cleaning System provides sole cleaning and boot shaft cleaning for boots, boot shafts, and soles. With two different exit points, you can choose to clean either the soles or the boot shafts.
Sole and boot cleaning machine for hygienic environments, made of 1.4301 stainless steel!
- Combined cleaning service for soles and boot cleaning
- Cleaning the Soles of Clogs, Shoes, and Boots
- Available with 3 different brush lengths
- Surfaces finely sanded
- Easy maintenance, as all functional parts are easily accessible through access panels
- Quick and easy cleaning of the brush rollers, as they can be removed without tools
- Sturdy, height-adjustable stainless steel screw-in feet
- Handrail on both sides for safe use
- High-quality bristles
- Adjustable operating time of the brush rollers
- Detergent amount can be adjusted individually
- A canister holder for sole cleaning is available as an accessory (see Accessories below)
- Control of the brush drive via a sensor
- Emergency Stop Button
The machine is designed to allow a large number of people (up to 30) to enter and exit rooms in the shortest possible time. The handrails provide a continuous, secure grip as people walk through. If needed, three different canister holders for sole cleaning are available as accessories (see below): 24 L wall-mounted, 24 L freestanding, and 20/25 L lockable.

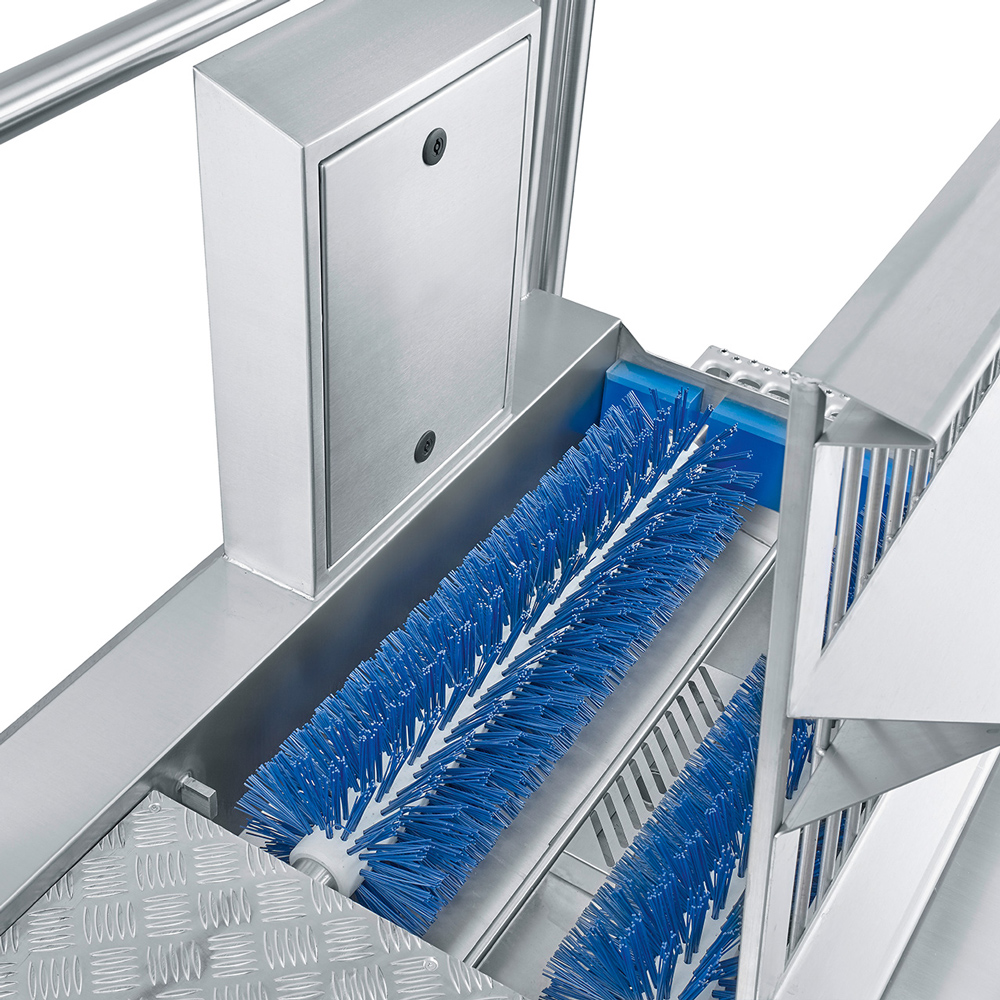

Two horizontal, rotating brushes, covered by a stainless steel grate, ensure quick cleaning. The brushes are sprayed with a mixture of water and detergent while in operation. The brush runtime is adjustable from 1 to 10 seconds. Activation is triggered by sensors at the entry and exit points. The boot carriers proceed to the boot shaft cleaning module—which features three vertically arranged rotating brushes—for boot shaft cleaning. Clog wearers exit the machine via a side bypass located before the shaft cleaning module. Activation here is triggered by a sensor integrated into the handle. These brushes are also sprayed with a mixture of water and detergent while the machine is running.
The ECO Soles and Boots Cleaning System is delivered fully assembled and ready for connection; however, the siphon, backflow preventer, seals, small parts, and on-site installation are not included in the price. Installation is very simple—just follow our instructions—and can be performed, for example, by a local plumbing company. The unit is delivered on a pallet by truck to the curb.
- Material: Stainless steel 1.4301
- Dimensions: (Version: Brush length 700 mm)
- 1805/2415 mm x 1100/1290 mm x 1800 mm (length x width x height)
- Machine length: 1805 mm
- Brush length: 700 mm
- Brush height: 300 mm
- Step length at the head end: 2 x 305 = 610 mm
- Bypass step length: 305 mm
- Item Number: HSE-00031
- Dimensions: (Version: Brush length 1100 mm)
- 2205/2815 mm x 1100/1290 mm x 1800 mm (length x width x height)
- Machine length: 2205 mm
- Brush length: 1100 mm
- Brush height: 300 mm
- Step length at the head end: 2 x 305 = 610 mm
- Bypass step length: 305 mm
- Item Number: HSE-00032
- Dimensions: (Version: Brush length 1600 mm)
- 2705/3315 mm x 1100/1290 mm x 1800 mm (length x width x height)
- Machine length: 2705 mm
- Brush length: 1600 mm
- Brush height: 300 mm
- Step length at the head end: 2 x 305 = 610 mm
- Bypass step length: 305 mm
- Item Number: HSE-00033
- Water inlet: 3/4"
- Water drain: DN 50
- Starter: Sensor
- Power connection: 3x400V/N/PE; 50/60 Hz / 16 A
- Power: 1.7 kW
- Protection Class: IP 65
- Weight: kg
- Warranty: 1 year
Technical data sheet
