Continuous-Flow Boot Cleaning Machine for boot soles and shafts, designed for hygienic environments, made of 1.4301 stainless steel!
- Efficient and hygienic cleaning of boot soles and shafts.
- Its extremely sturdy and functional design ensures quick and thorough cleaning of soles and boot shafts.
- All internal components are accessible through access panels for easy maintenance.
- The brushes can be removed without tools, making it quick and easy to clean the machine.
- The machine is automatically activated or deactivated by a sensor control system.
- All surfaces are finely sanded.

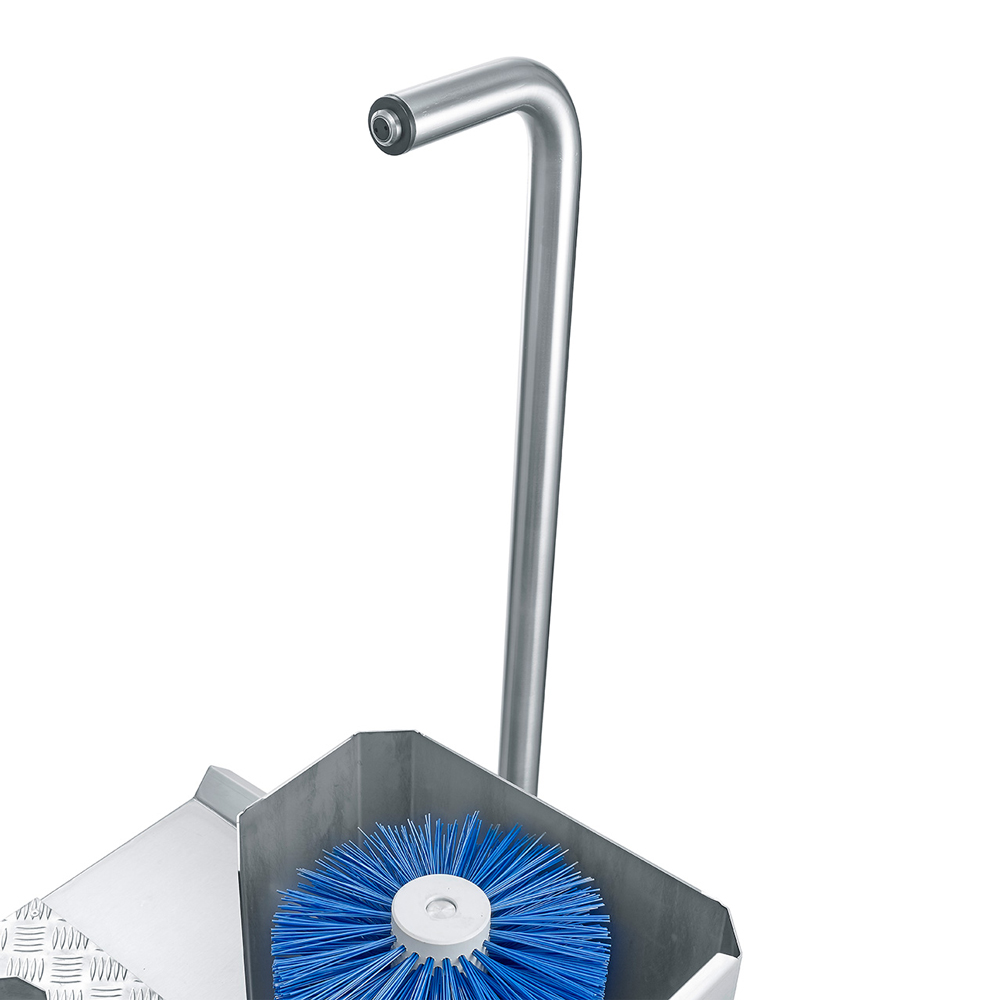

- Equipped with a handrail for a secure grip while performing boot cleaning.
- Precise dosing of the cleaning agent is possible (injector).

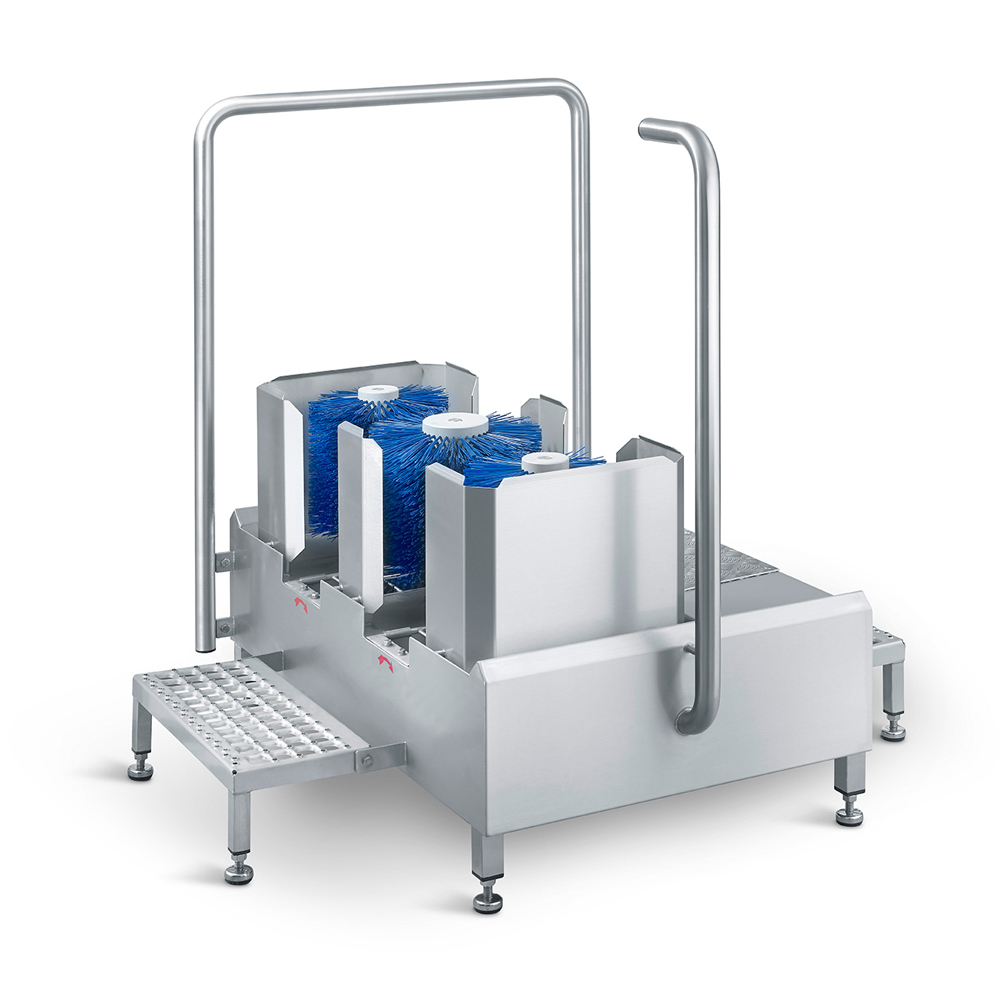

The Continuous-Flow Boot Cleaning Machine enables quick and thorough cleaning of soles and boot shafts with minimal time and energy. The machine is designed so that a large number of people can enter and exit rooms in the shortest possible time. The rotation of the round brushes is triggered by a sensor when a person steps into the sole cleaner and stops again when they step out. As the boots rub against the rotating floor and side brushes, the soles and shafts are cleaned quickly and thoroughly. The integrated injector ensures an optimal mixing ratio between water and the cleaning agent during boot cleaning. Adjusting the dosing nozzle changes the mixture of water and cleaning/disinfectant. A handrail permanently mounted on both sides ensures a steady footing at all times as users walk through the boot washer.

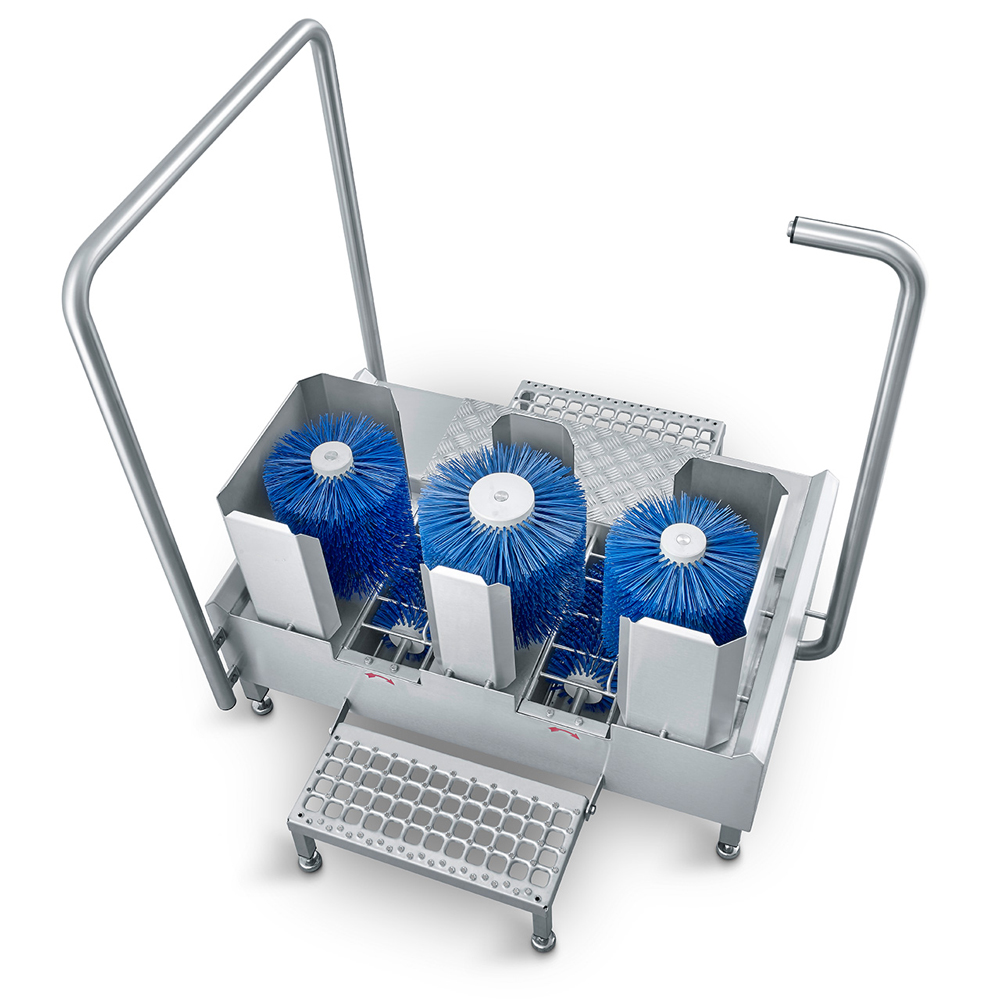

The Continuous-Flow Boot Cleaning Machine is available in two different versions (see options). The standard version is designed to clean both the soles and shafts of boots simultaneously and is equipped with 3 side brushes and 2 floor brushes for this purpose. Alternatively, we offer a version designed solely for boot shaft cleaning. This boot washing system is equipped only with the three side brushes and is particularly well-suited as an additional cleaning step following a continuous-through sole cleaner.
The Continuous-Flow Boot Cleaning Machine is ready to be connected. All you need are various seals and small parts.
- Construction: Stainless steel 1.4301
- Dimensions (Version: Sole and boot shaft cleaning):
- 1160 mm x 815/1615 mm x 1213 mm (width x depth x height)
- Machine depth: 815 mm
- Step length at the head end: 2 x 400 = 800 mm
- Item number: STWH-00041
- Dimensions (Version: boot shaft cleaning only):
- 800 mm x 330/1130 mm x 1220 mm (width x depth x height)
- Machine depth: 330 mm
- Step length at the head end: 2 x 400 = 800 mm
- Item number: STWH-00042
- Water inlet: 3/4"
- Water outlet: DN 50
- Starter: Sensor in the handle
- Power connection: 3x400V/N/PE; 50 Hz
- Power: 1.25 kW
- Protection class: IP 65
- Weight: 160 / 120 kg
- Warranty: 2 years
